Brake Booster: Installation
WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Be careful not to deform or bend brake lines, during installation of booster.
- Replace clevis pin if damaged.
- Refill with new brake fluid "DOT 3".
- Never reuse drained brake fluid.
- Take care not to damage brake booster mounting bolt thread when installing. Due to the acute angle of installation, the threads can be damaged with the dash panel.

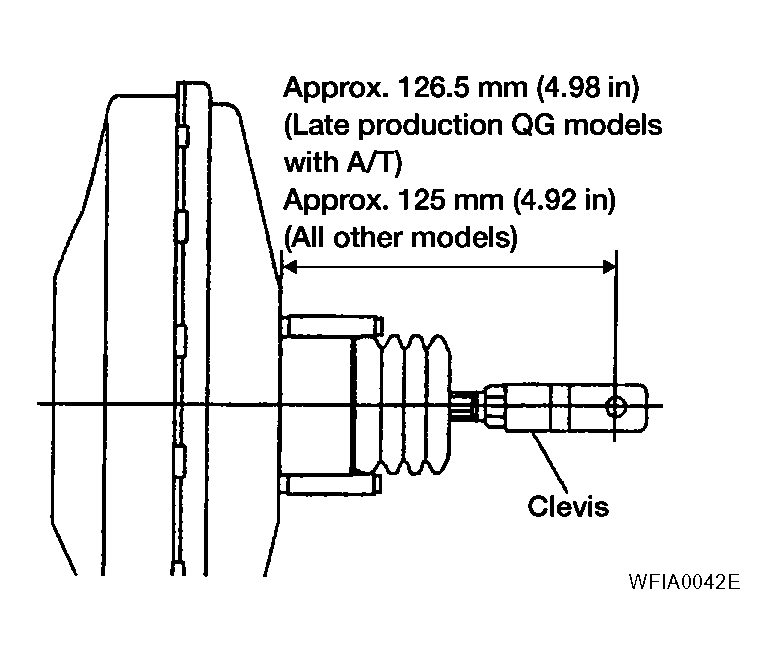

- Before fitting booster, temporarily adjust clevis to dimension shown.
- Fit booster, then secure mounting nuts (brake pedal bracket to master cylinder) lightly.
- Connect brake pedal and booster input rod with clevis pin.
- Install and tighten brake booster mounting nuts to specification.
Brake booster: 13 - 16 N.m (1.3 - 1.6 kg-m, 9-12 ft-lb)
- Install master cylinder. Refer to "INSTALLATION ".
- Connect brake booster vacuum hose.
- Adjust brake pedal height. Refer to "BRAKE PEDAL HEIGHT ".
- Bleed air from brake system. Refer to "BLEEDING BRAKE SYSTEM ".
