Brake Hydraulic Line: Removal

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
  • All hoses must be free from excessive bending, twisting and pulling.
  1. Connect vinyl tube to air bleeder valve.
  2. Drain brake fluid from each air bleeder valve by depressing brake pedal.
  3. Remove flare nut connecting brake tube and hose, then withdraw lock spring.
  4. Cover openings to prevent entrance of dirt whenever disconnecting brake line.

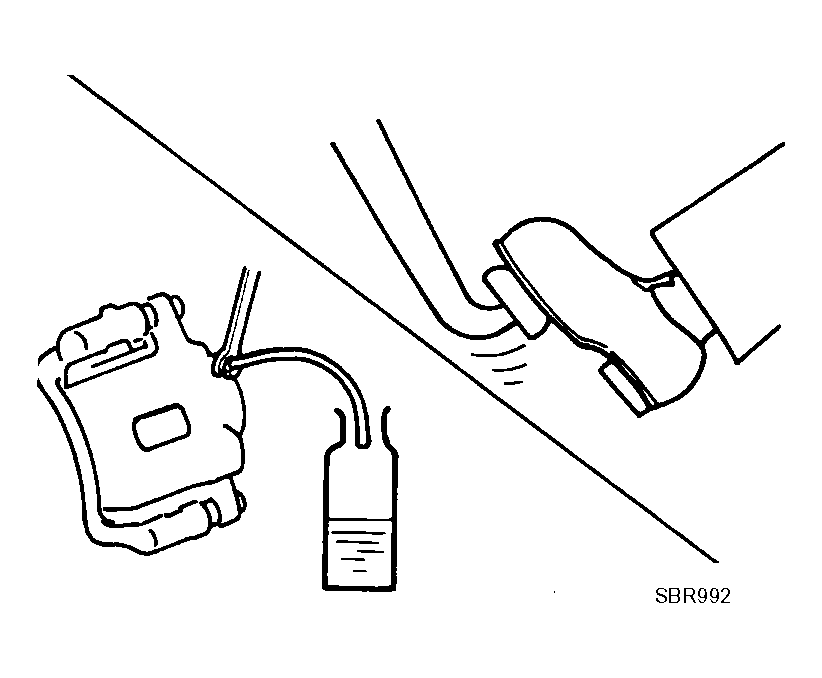

    Fig 1: Draining Brake Fluid From Each Air Bleeder Valve By Depressing Brake Pedal
    G04194571Courtesy of NISSAN MOTOR CO., U.S.A.
