Master Cylinder: Assembly

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Insert secondary piston assembly. Then insert primary piston assembly.
- Lubricate with brake fluid.
- Pay attention to alignment of secondary piston slit with valve stopper mounting hole of cylinder body (with ABS).

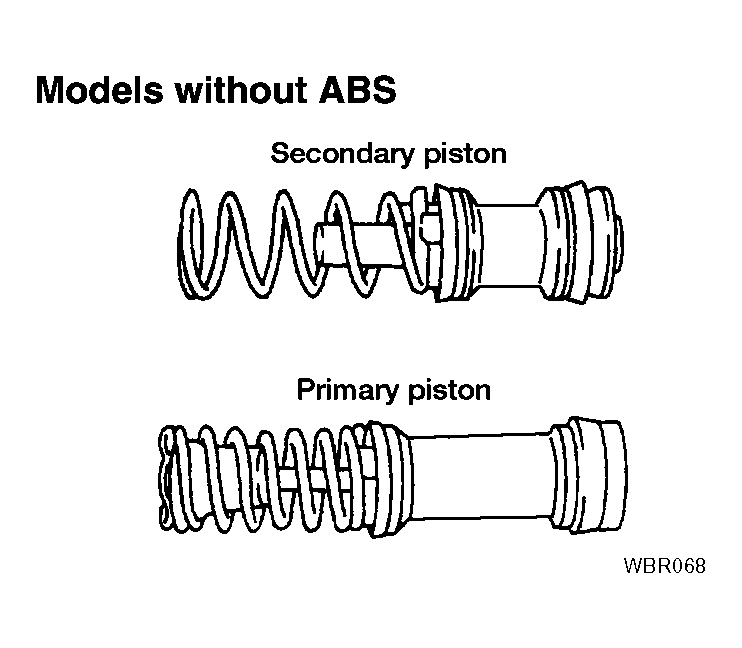

Fig 1: Inserting Secondary Piston Then Primary Piston Assembly (Without ABS)
Courtesy of NISSAN MOTOR CO., U.S.A.

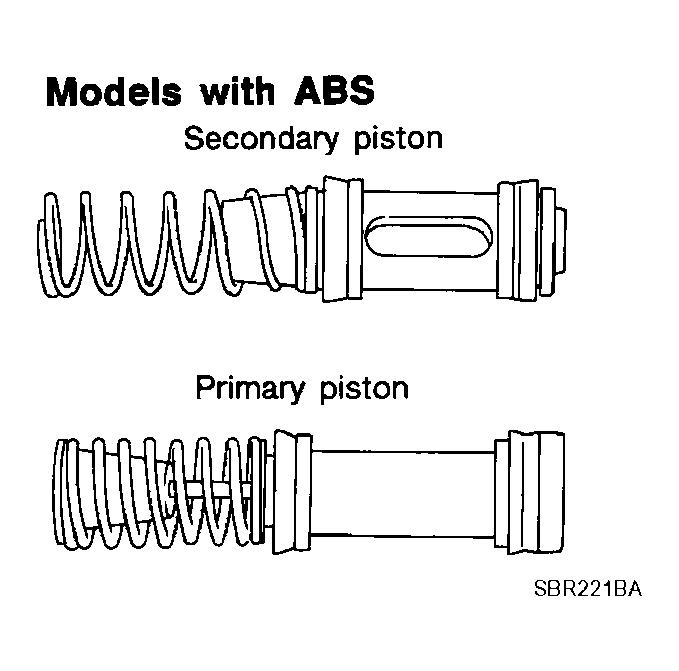

Fig 2: Inserting Secondary Piston Then Primary Piston Assembly (With ABS)
Courtesy of NISSAN MOTOR CO., U.S.A.
Install piston stopper pin while piston is pushed into cylinder (with ABS).

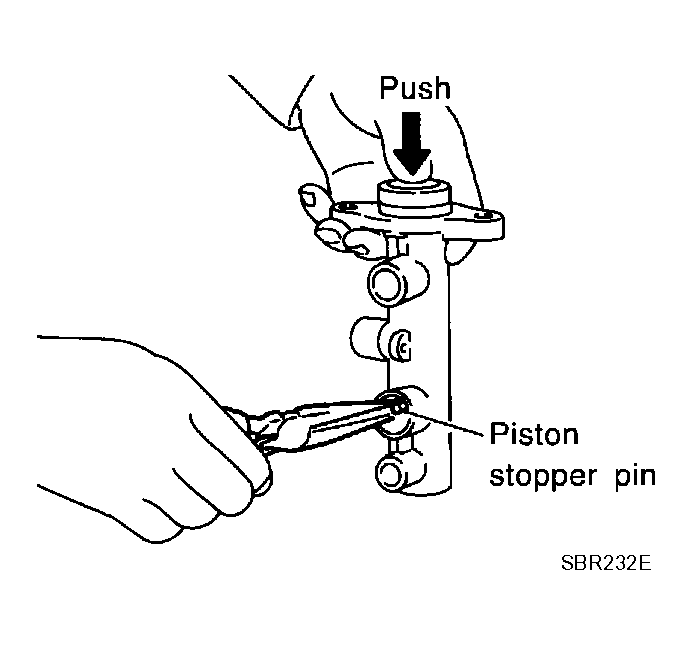

Fig 3: Installing Piston Stopper Pin

Courtesy of NISSAN MOTOR CO., U.S.A.

Push reservoir tank seals and reservoir tank into cylinder body.
- Lubricate with brake fluid.
Install spring pin (with ABS).
Install stopper cap.
- Before installing stopper cap, ensure that claws are bent inward.

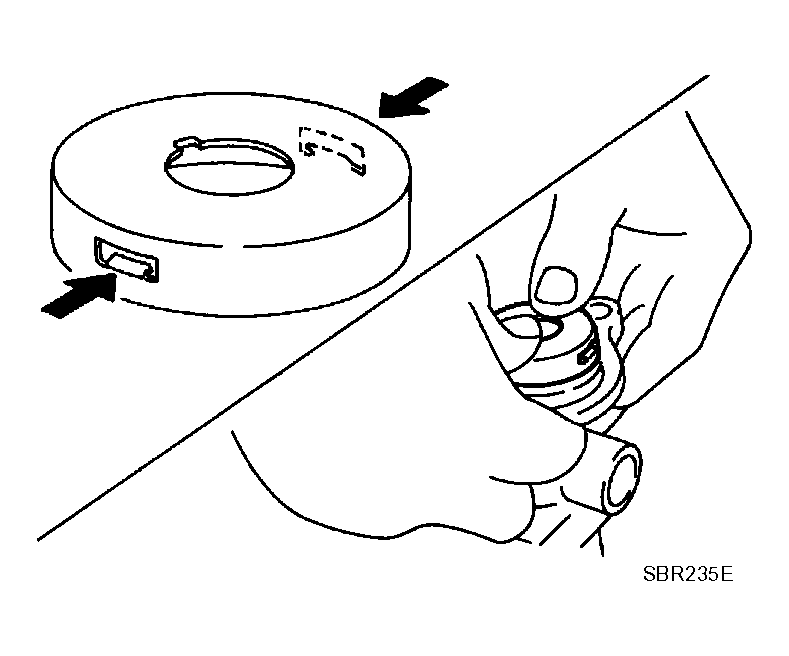

Fig 4: Installing Stopper Cap
Courtesy of NISSAN MOTOR CO., U.S.A.
