Disassembly and Assembly of Caliper Assembly: Assembly

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

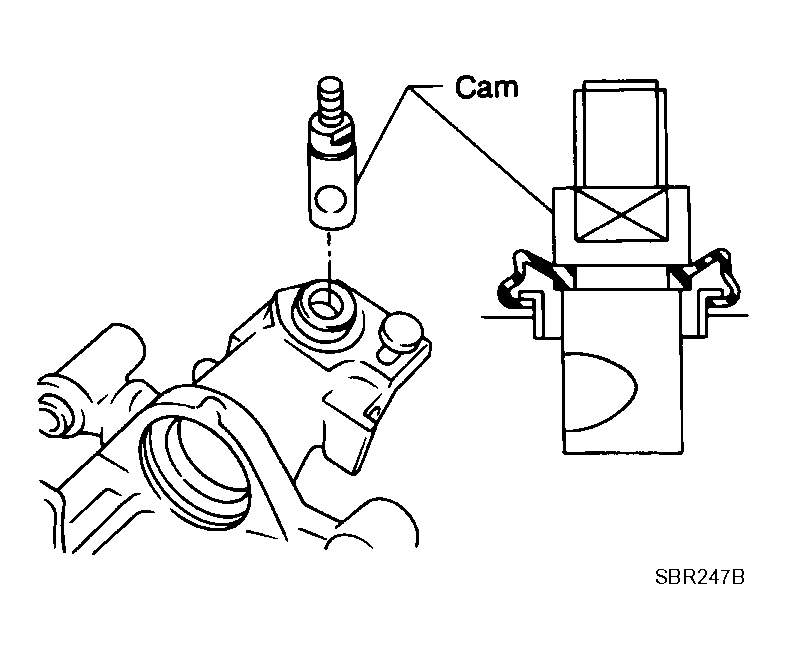

Insert cam with depression facing toward open end of cylinder.

Fig 1: Inserting Cam With Depression Facing Toward Open End Of Cylinder
Courtesy of NISSAN MOTOR CO., U.S.A.

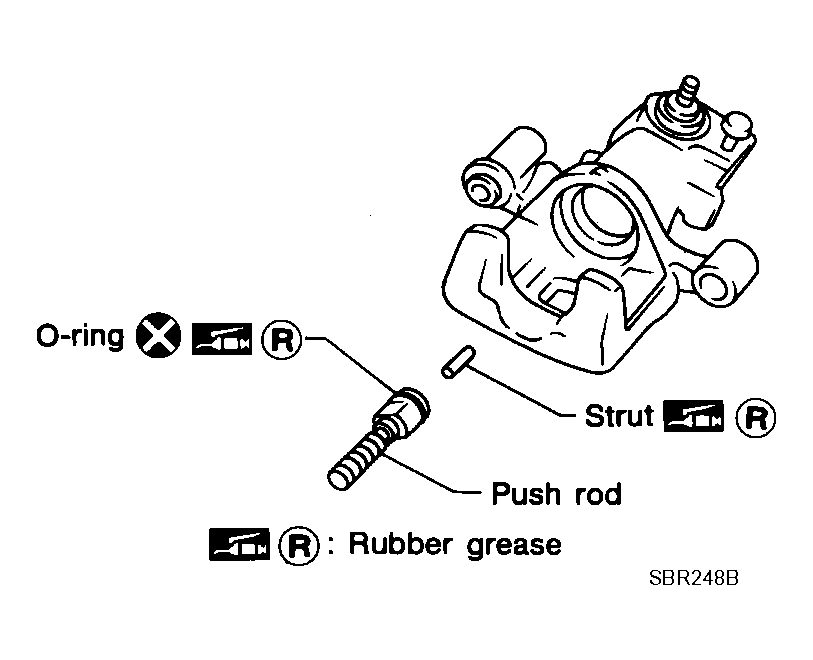

Generously apply rubber grease to strut and push rod to make insertion easy.

Fig 2: Applying Rubber Grease To Strut And Push Rod
Courtesy of NISSAN MOTOR CO., U.S.A.

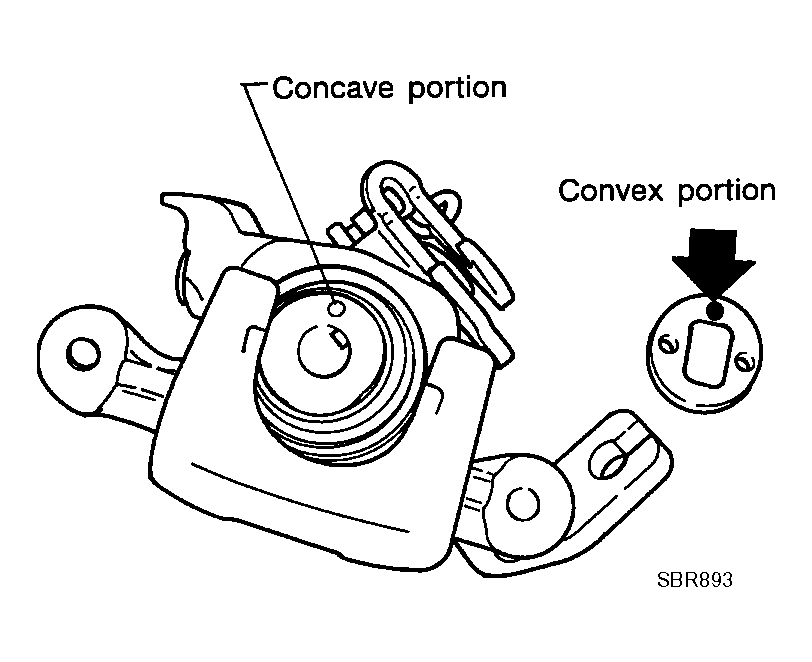

Fit push rod into square hole in key plate. Also match convex portion of key plate with concave portion of cylinder.

Fig 3: Identifying Convex & Concave Portions Of Cylinder
Courtesy of NISSAN MOTOR CO., U.S.A.

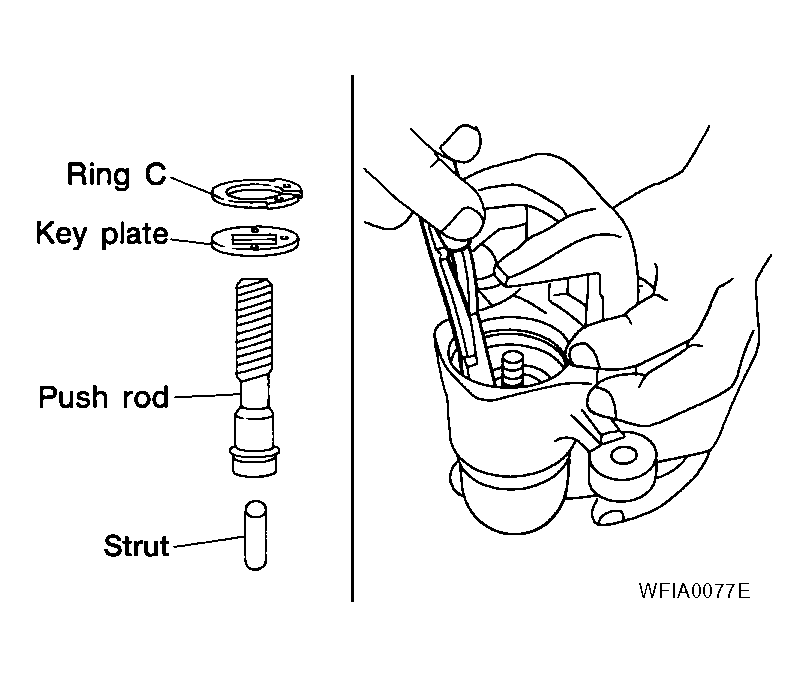

Install ring C with a suitable tool.

Fig 4: Installing Ring C With Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

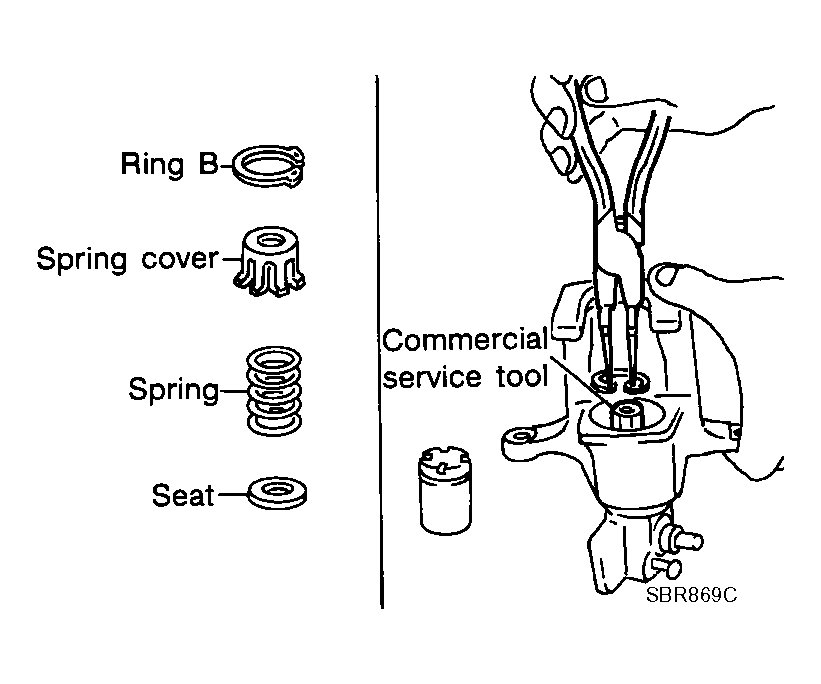

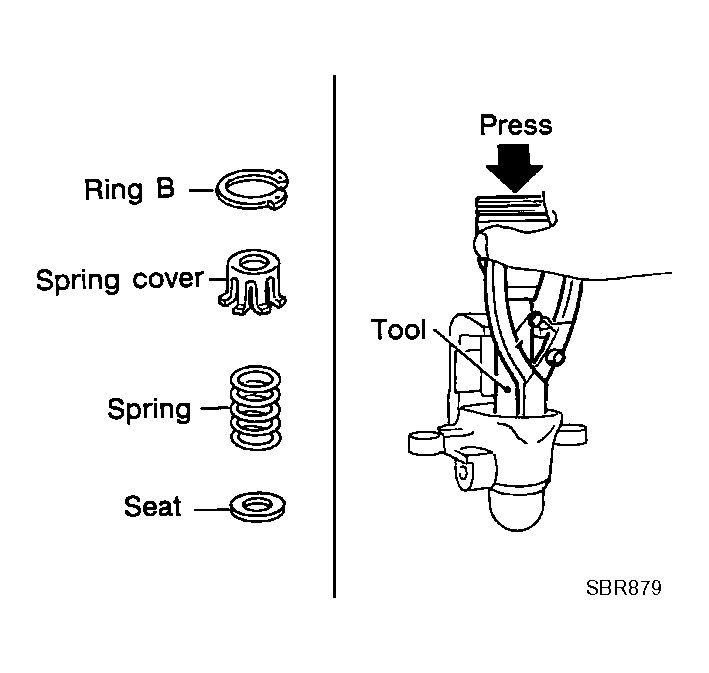

Install seat, spring, spring cover and ring B with snap ring pliers and a suitable press and drift.

Fig 5: Installing Snap Ring Using Pliers (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Installing Snap Ring Using Pliers (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

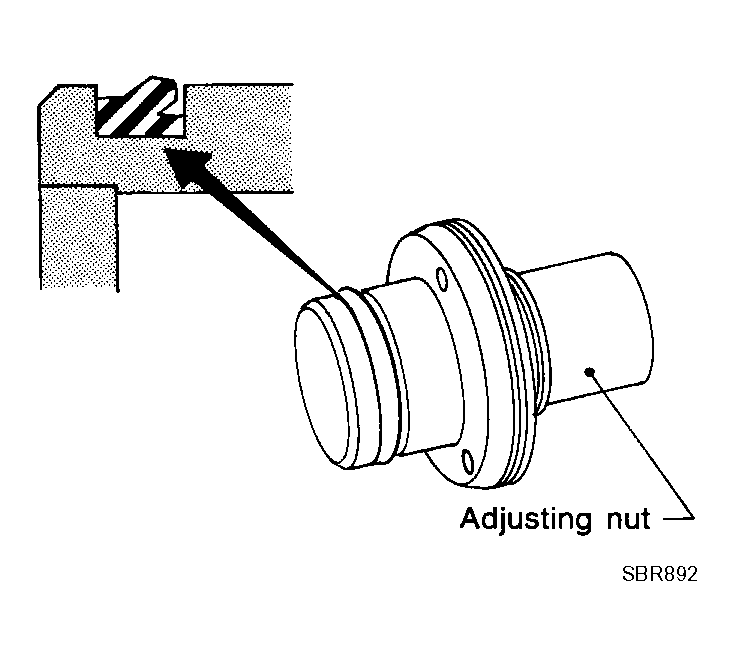

Install cup in the specified direction.

Fig 7: Installing Cup
Courtesy of NISSAN MOTOR CO., U.S.A.

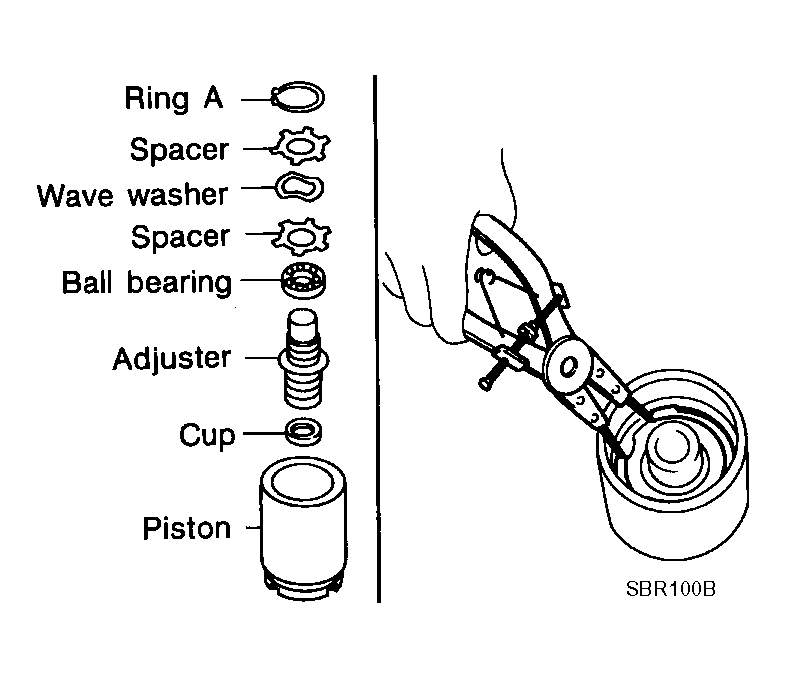

Install cup, adjuster, bearing, spacers, washer and ring A with a suitable tool.
Insert piston seal into groove on cylinder body.

Fig 8: Inserting Piston Seal Into Groove On Cylinder Body
Courtesy of NISSAN MOTOR CO., U.S.A.

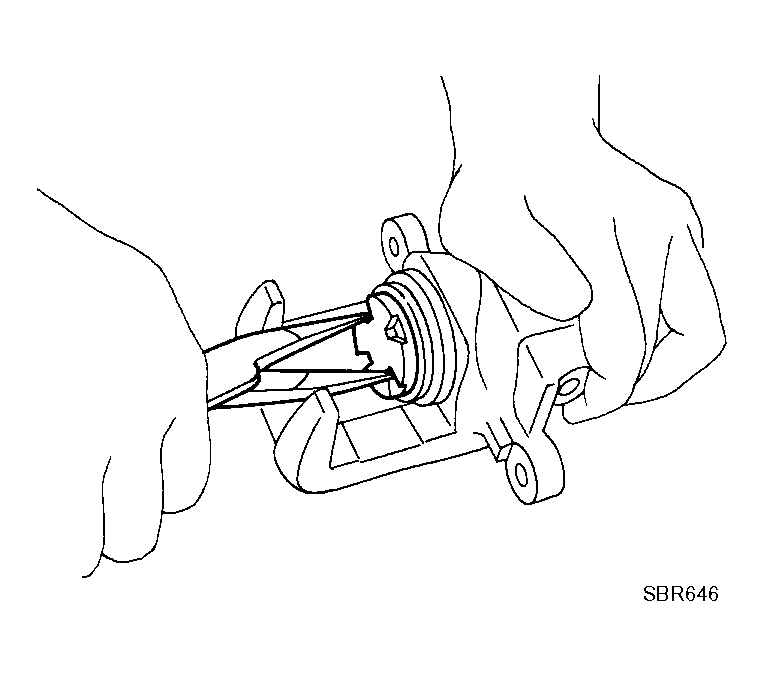

With piston boot fitted to piston, insert piston boot into groove on cylinder body and fit piston by turning it clockwise with long nose pliers, or suitable commercial service tool.

Fig 9: Turning Piston Using Long Nose Pliers
Courtesy of NISSAN MOTOR CO., U.S.A.

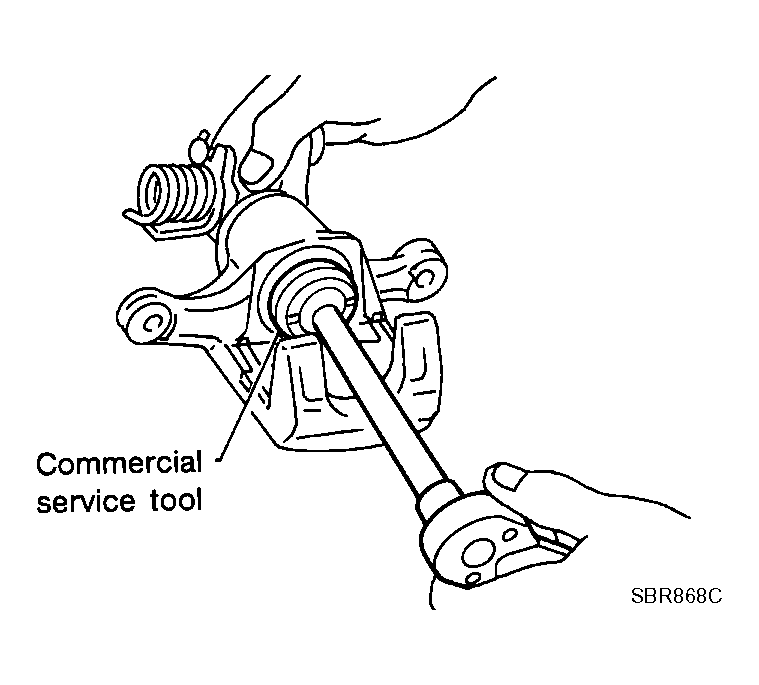

Fig 10: Installing Commercial Service Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Install toggle lever, return spring and cable guide.

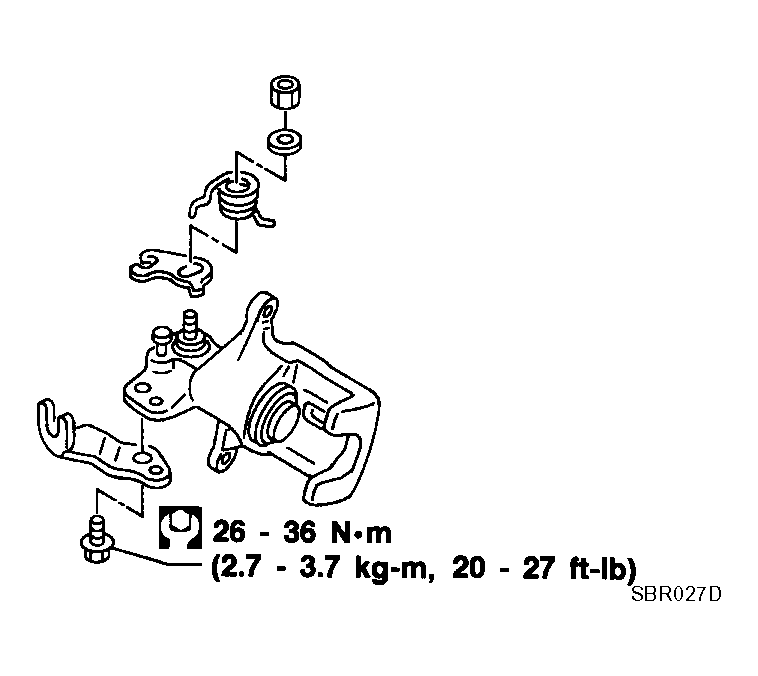

Fig 11: Installing Toggle Lever, Return Spring And Cable Guide With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

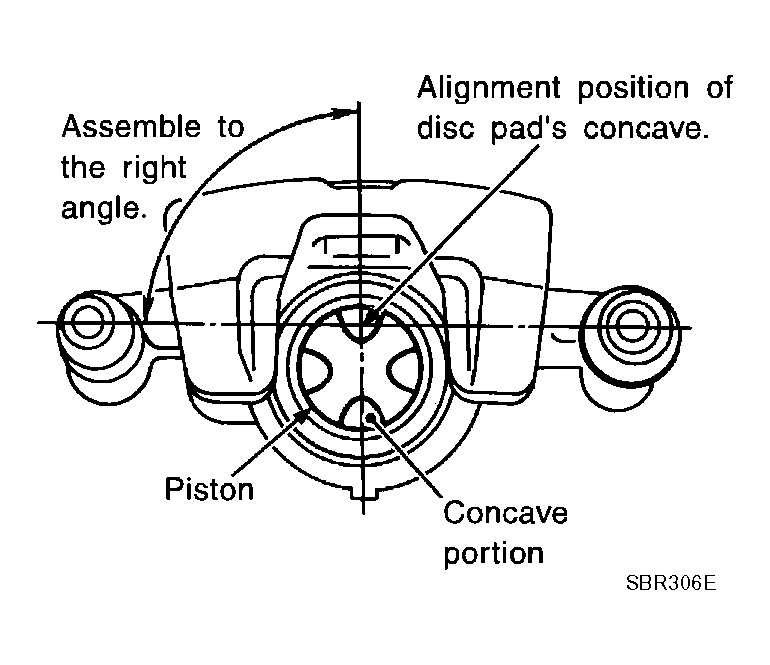

Adjust the piston to the right angle as shown.

Fig 12: Adjusting Piston To Right Angle
Courtesy of NISSAN MOTOR CO., U.S.A.
