Pad Replacement

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Clean brake pads with a vacuum dust collector to minimize the hazard of airborne particles or other materials.
CAUTION:
  • When cylinder body is open, do not depress brake pedal because piston will pop out.
  • Be careful not to damage piston boot or get oil on rotor. Always replace shims in replacing pads.
  • If shims are rusted or show peeling of rubber coat, replace them with new shims.
  • It is not necessary to remove connecting bolt except for disassembly or replacement of caliper assembly. In this case, suspend cylinder body with wire so as not to stretch brake hose.
  • Burnish the brake contact surfaces after refinishing or replacing drums or rotors, after replacing pads or linings, or if a soft pedal occurs at very low mileage.

    Refer to "BRAKE BURNISHING PROCEDURE "

  1. Remove master cylinder reservoir cap.
  2. Remove wheel and tire. Refer to "TIRE ROTATION ".
  3. Remove brake cable mounting bolt and lock spring.

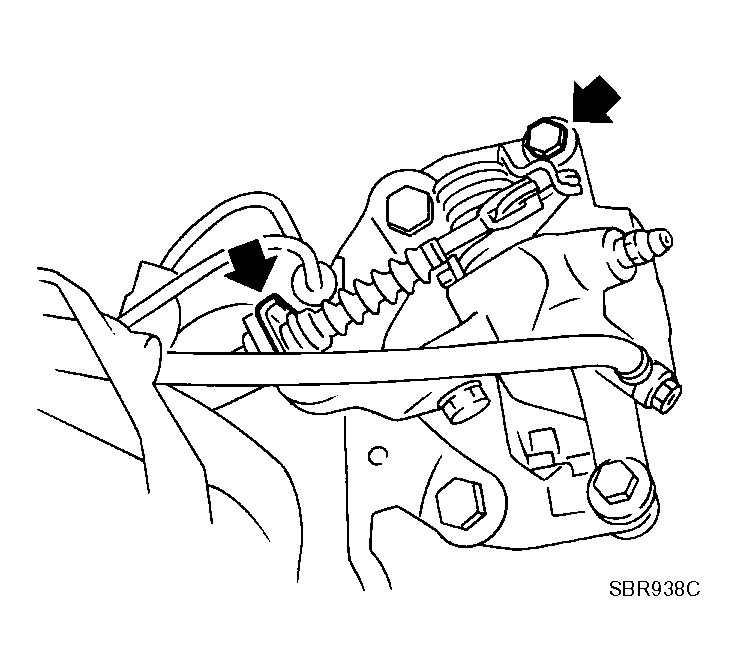

    Fig 1: Removing Brake Cable Mounting Bolt And Lock Spring
    G04194623Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Release parking brake control lever, then disconnect cable from the caliper.
  5. Remove upper pin bolt.
  6. Open cylinder body downward and secure with wire as shown. Then remove pad retainers, and inner and outer shims.

    Standard pad thickness: 10 mm (0.39 in)

    Pad wear limit: 2.0 mm (0.079 in)

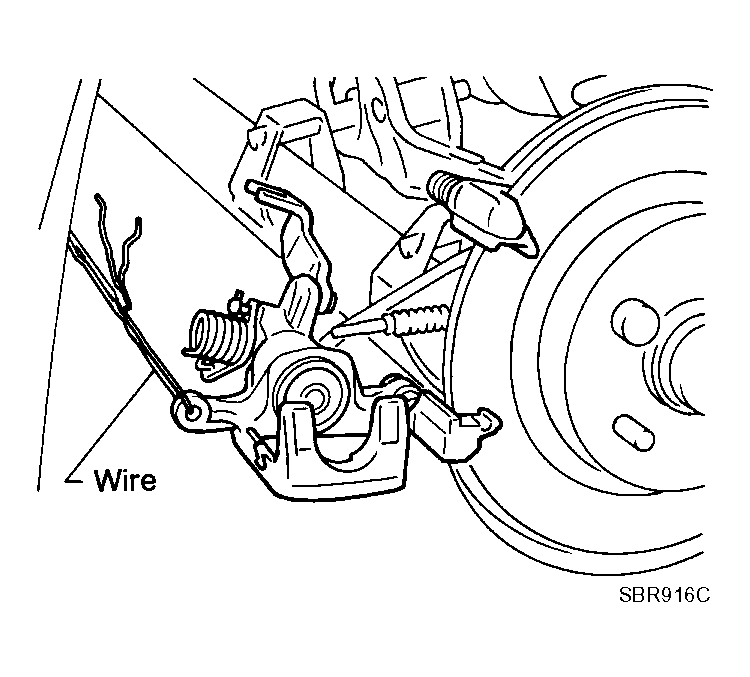

    Fig 2: Securing Cylinder Body With Wire
    G04194624Courtesy of NISSAN MOTOR CO., U.S.A.
  7. When installing new pads, push piston into cylinder body by gently turning piston clockwise using suitable commercial service tool or long nose pliers, as shown.
    NOTE: Carefully monitor brake fluid level because brake fluid will return to reservoir when pushing back piston.

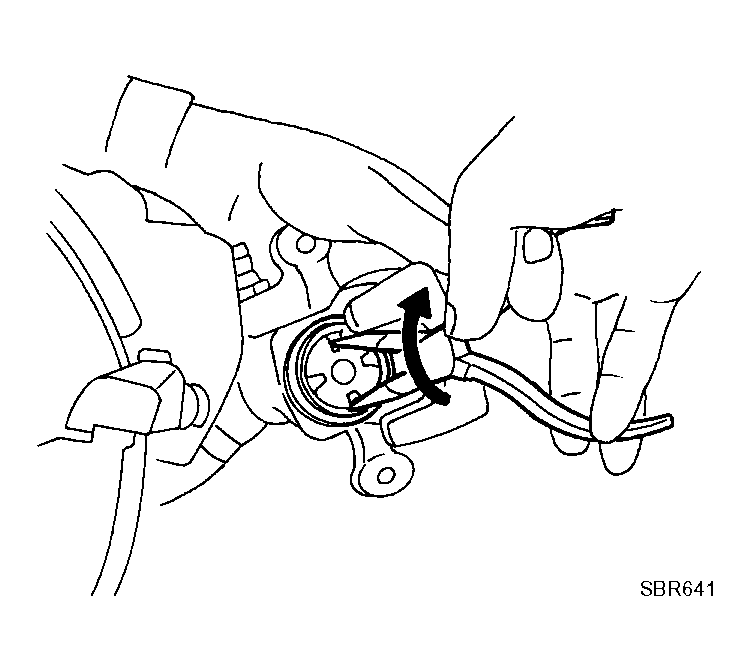

    Fig 3: Turning Piston Using Suitable Commercial Service Tool
    G04194625Courtesy of NISSAN MOTOR CO., U.S.A.

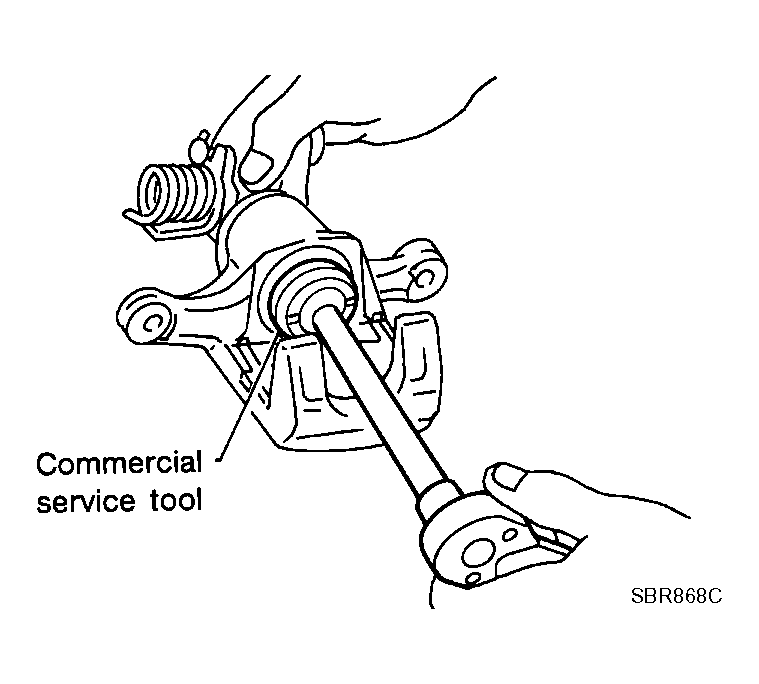

    Fig 4: Installing Commercial Service Tool
    G04194626Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Adjust the piston to the right angle as shown.

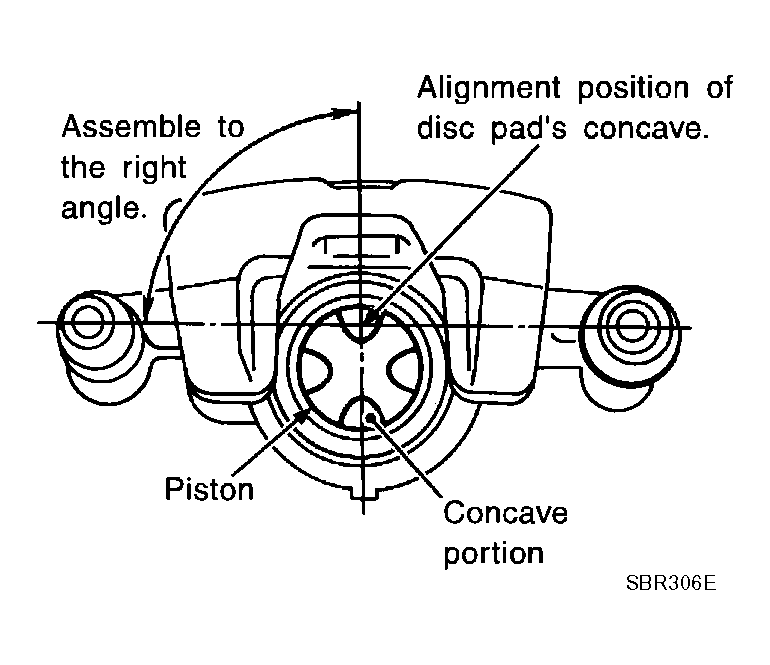

    Fig 5: Adjusting Piston To Right Angle
    G04194627Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install caliper assembly.
    • As shown in the figure, align the piston's concave to the pad's convex, then install the cylinder body to the torque member.

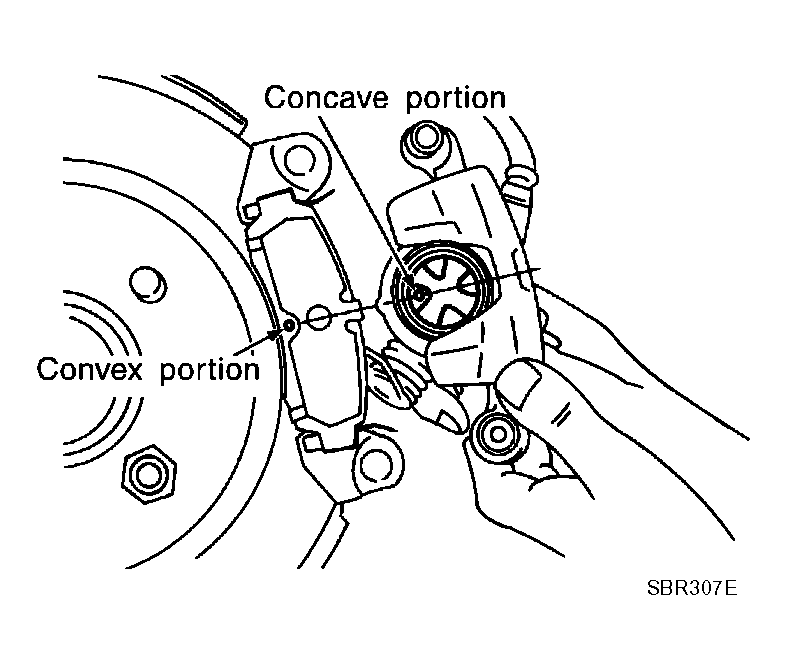

    Fig 6: Installing Caliper Assembly
    G04194628Courtesy of NISSAN MOTOR CO., U.S.A.
