Brake Pedal

WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

BRAKE PEDAL SPECIFICATION

Unit: mm (in)
Courtesy of NISSAN MOTOR CO., U.S.A.

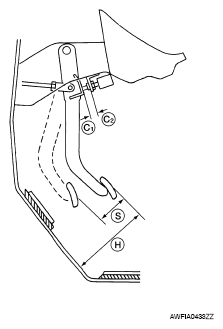

Brake pedal height (H) (from dash lower panel top surface)	CVT	164.0 - 174.0 (6.46 - 6.85)
	M/T	164.0 - 174.0 (6.46 - 6.85)
Brake pedal full stroke (S) [under a force of 490 N (50 kg-f, 110 lb-f) with engine running]	CVT	135.1 (5.32)
	M/T	135.1 (5.32)
Clearance between stopper bracket and threaded end of the stop lamp switch and ASCD cancel switch (C1 and C2)		0.74 - 1.96 (0.0291 - 0.0772)
