Lock up and Select Control System Diagram

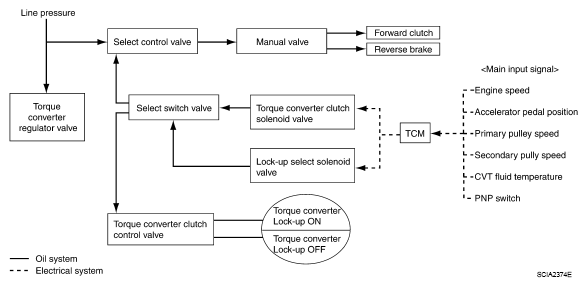

Fig 1: Lock-Up And Select Control System Diagram

G04889065
