Wiring Diagram - CVT - ODSW: Notes

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

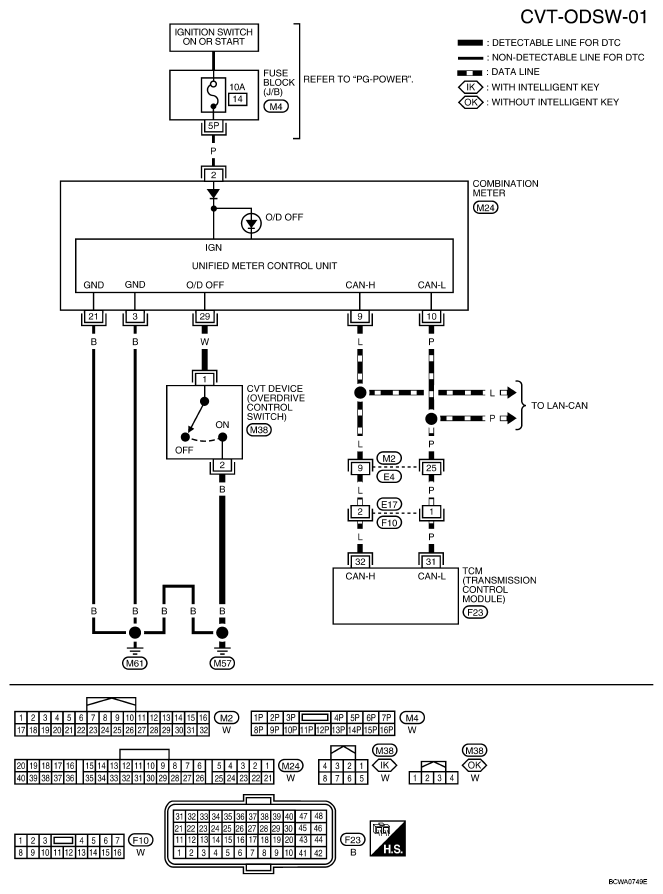

Fig 1: Wiring Diagram - CVT-ODSW-01

G04927079
