Removal and Installation (MR20DE): Components

For Installation, go to INSTALLATION .

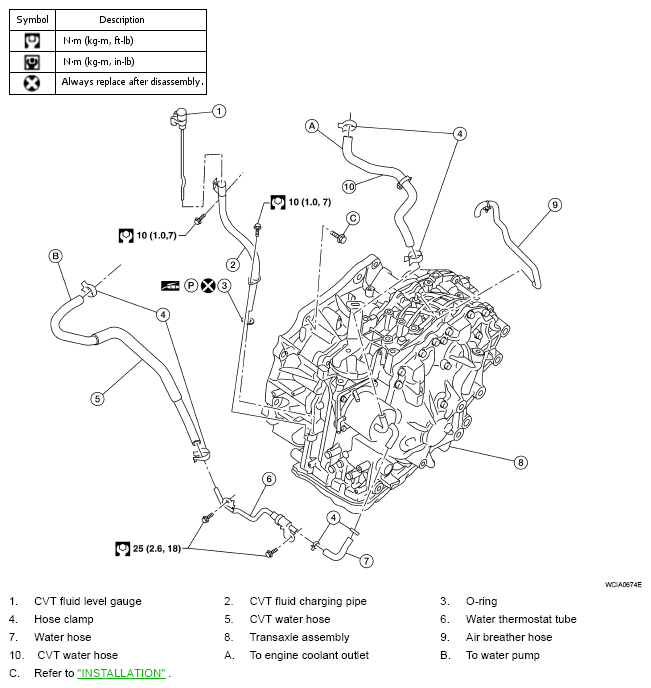

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications
G04927128
