Overall Sequence

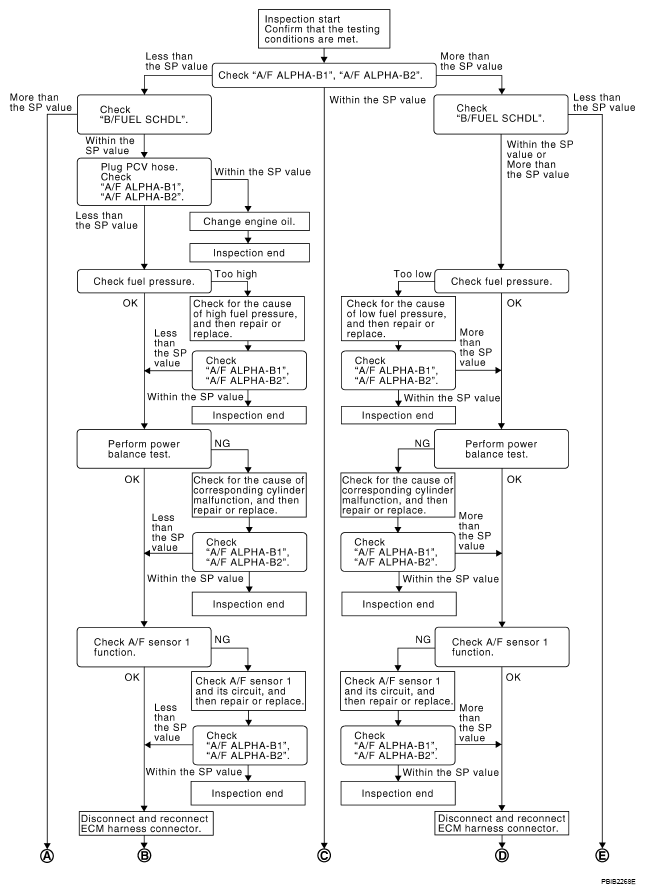

Fig 1: Diagnostic Procedure Chart (1 Of 2)
G04874899Courtesy of NISSAN MOTOR CO., U.S.A.

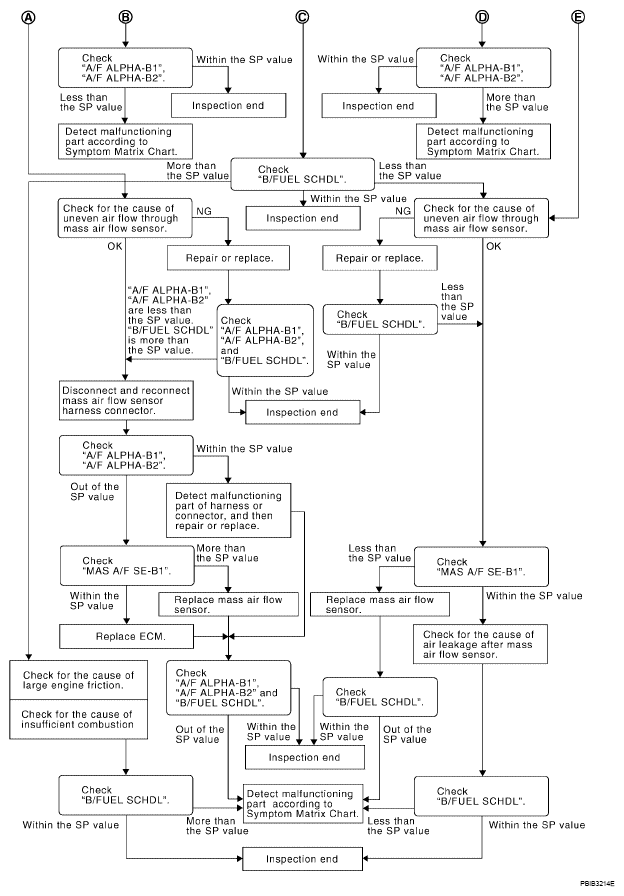

Fig 2: Diagnostic Procedure Chart (2 Of 2)
G04900119Courtesy of NISSAN MOTOR CO., U.S.A.
