DTC P2135 TP Sensor: Wiring Diagram

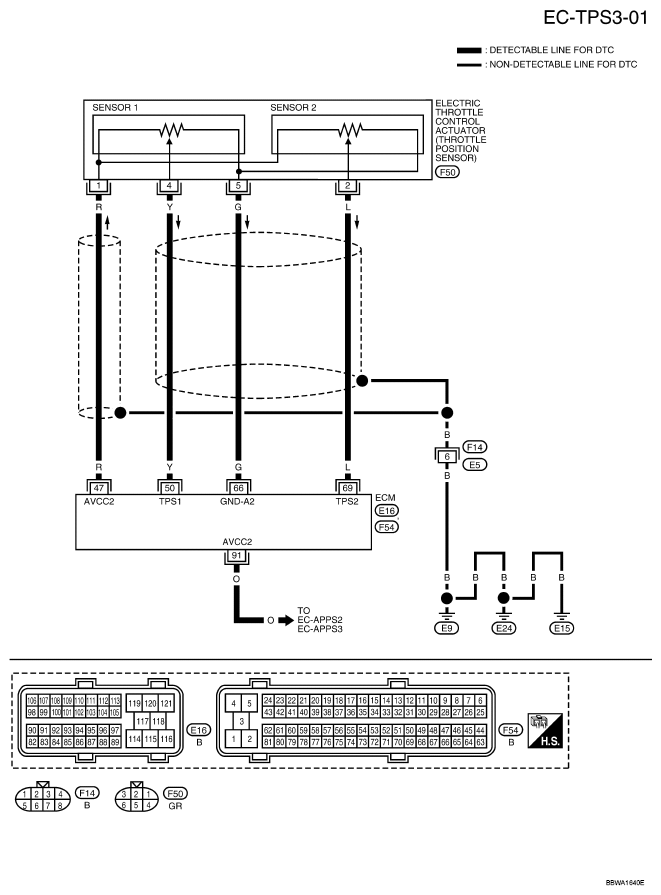

Fig 1: Wiring Diagram - EC-TPS3-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

CONNECTOR TERMINAL SPECIFICATION DATA REFERENCE VALUES

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
47	R	Throttle position sensor power supply	[Ignition switch: ON]	Approximately 5V
50	Y	Throttle position sensor 1	[Ignition switch: ON] Engine stopped Shift lever: D Accelerator pedal: Fully released	More than 0.36V
50	Y	Throttle position sensor 1	[Ignition switch: ON] Engine stopped Shift lever: D Accelerator pedal: Fully depressed	Less than 4.75V
66	G	Throttle position sensor ground	[Engine is running] Warm-up condition Idle speed	Approximately 0V
69	L	Throttle position sensor 2	[Ignition switch: ON] Engine stopped Shift lever: D Accelerator pedal: Fully released	Less than 4.75V
69	L	Throttle position sensor 2	[Ignition switch: ON] Engine stopped Shift lever: D Accelerator pedal: Fully depressed	More than 0.36V
91	O	APP sensor 2 power supply	[Ignition switch: ON]	Approximately 5V
