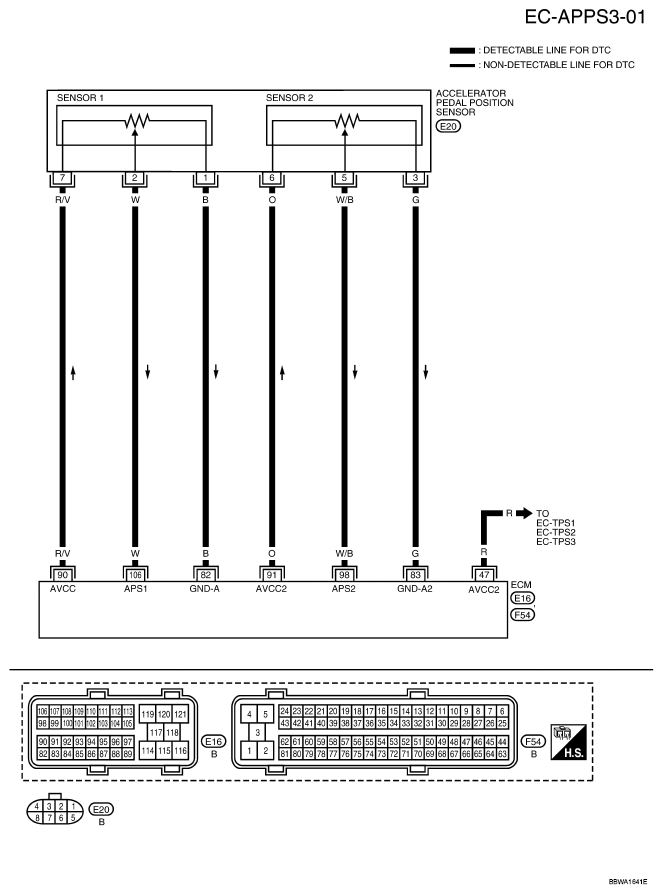

DTC P2138 App Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
CONNECTOR TERMINAL SPECIFICATION DATA REFERENCE VALUES
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 47 | R | Throttle position sensor power supply | [Ignition switch: ON] | Approximately 5V |
| 82 | B | APP sensor 1 ground | [Engine is running]
|
Approximately 0V |
| 83 | G | APP sensor 2 ground | [Engine is running]
|
Approximately 0V |
| 90 | R/V | APP sensor 1 power supply | [Ignition switch: ON] | Approximately 5V |
| 91 | O | APP sensor 2 power supply | [Ignition switch: ON] | Approximately 5V |
| 98 | W/B | Accelerator pedal position sensor 2 | [Ignition switch: ON]
|
0.25 - 0.5V |
[Ignition switch: ON]
|
0.2 - 2.5V | |||
| 106 | W | Accelerator pedal position sensor 1 | [Ignition switch: ON]
|
0.5 - 1.0V |
[Ignition switch: ON]
|
4.2 - 4.8V |
