Diagnostic Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

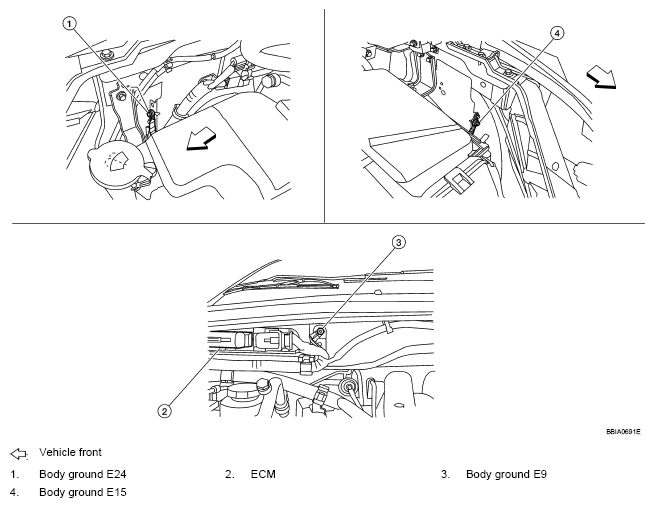

  Fig 1: Identifying Ground Screws On Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.
CHECK INTAKE AIR TEMPERATURE SENSOR
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 3.

NG: Replace mass air flow sensor (with intake air temperature sensor).
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

Refer to "WIRING DIAGRAM ".

: INSPECTION END
