Hydraulic Circuit Diagram

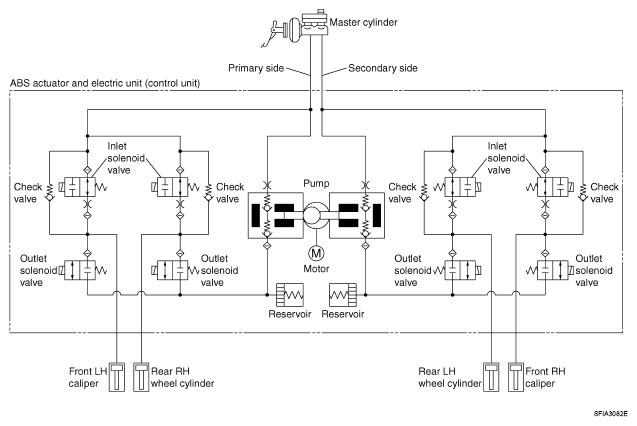

Fig 1: Brake Control System Hydraulic Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
