Removal and Installation QR25DE: Notes

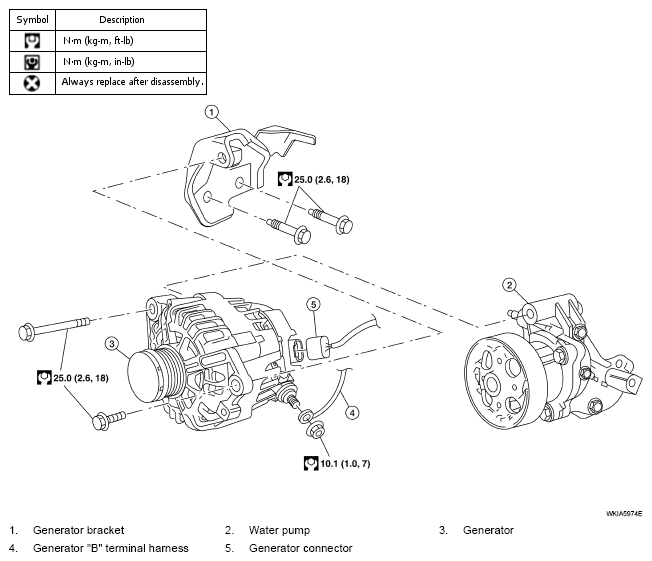

Fig 1: Charging System Replacement Components (QR25DE) With Torque Specifications
G04928287Courtesy of NISSAN MOTOR CO., U.S.A.
