Warning Lamps: Schematic

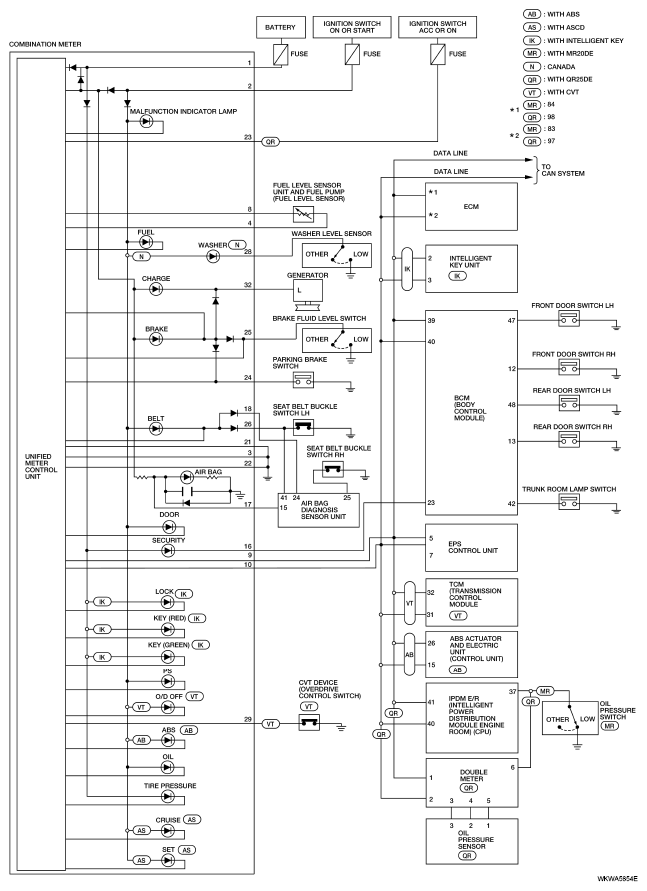

Fig 1: Warning Lamps - Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
