Component Parts

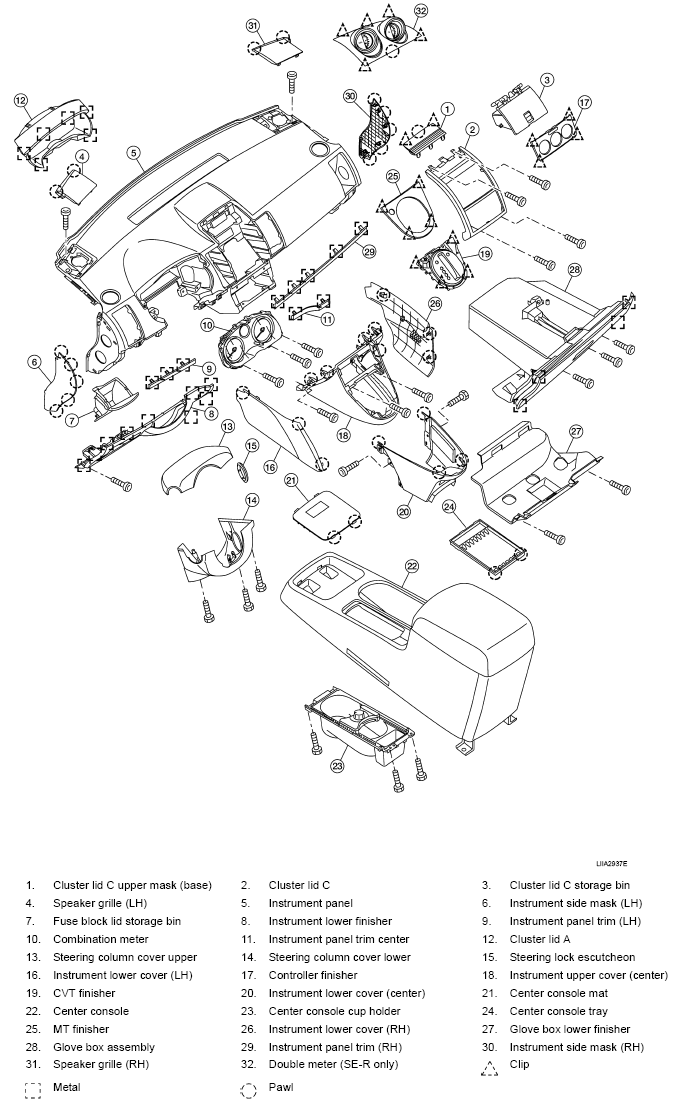

Fig 1: Identifying Instrument Panel Assembly Components Parts
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
