Bank 2

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

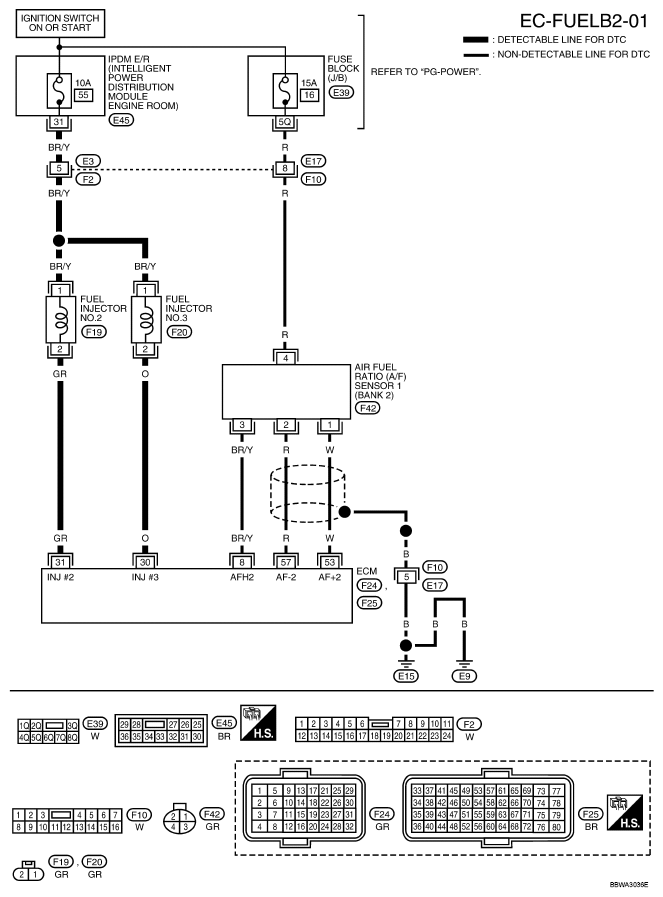

Fig 1: EC-FUELB2-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-III.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

INPUT/OUTPUT VOLTAGE CHART

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
8	BR/Y	A/F sensor 1 heater (Bank 2)	[Engine is running] Warm-up condition Idle speed (More than 140 seconds after starting engine)	Courtesy of NISSAN MOTOR CO., U.S.A.
30 31	O GR	Fuel injector No. 3 Fuel injector No. 2	[Engine is running] Warm-up condition Idle speed NOTE: The pulse cycle changes depending on RPM at idle	Courtesy of NISSAN MOTOR CO., U.S.A.
30 31	O GR	Fuel injector No. 3 Fuel injector No. 2	[Engine is running] Warm-up condition Engine speed: 2, 000 RPM	Courtesy of NISSAN MOTOR CO., U.S.A.
53	W	A/F sensor 1 (Bank 2)	[Engine is running] Warm-up condition Engine speed: 2, 000 RPM	Approximately 1.8V Output voltage varies with air fuel ratio.
57	R	A/F sensor 1 (Bank 2)	[Ignition switch: ON]	Approximately 2.2V
*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
