DTC P0181 FTT Sensor: Wiring Diagram

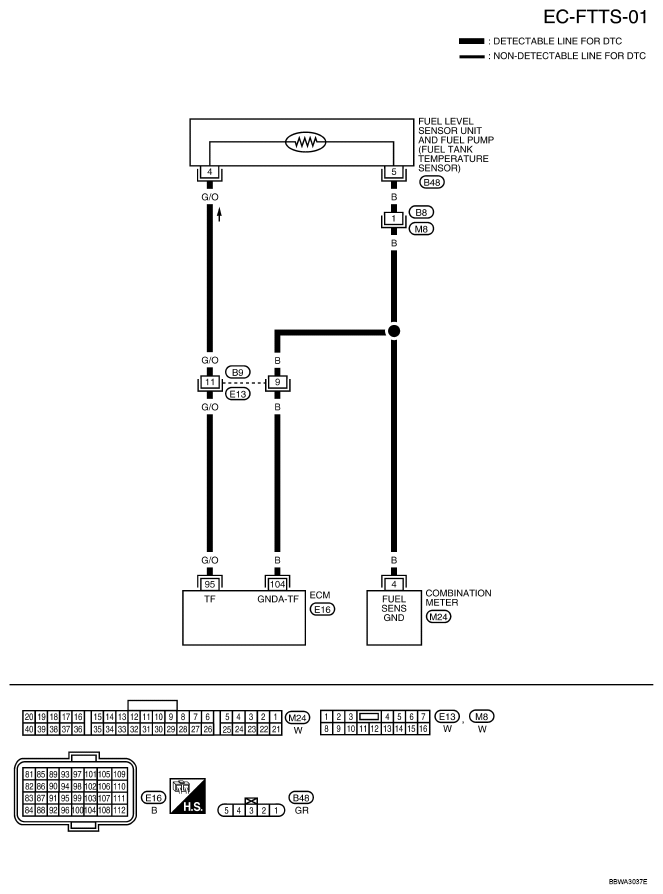

Fig 1: EC-FTTS-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
