DTC P0340 CMP Sensor (Phase): Wiring Diagram

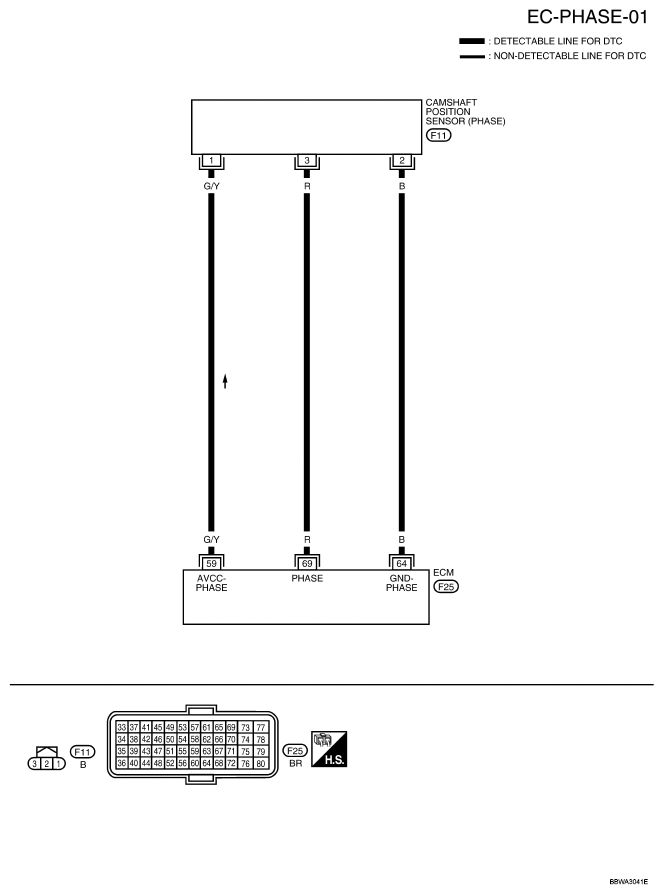

Fig 1: EC-PHASE-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-III.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

INPUT/OUTPUT VOLTAGE CHART

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
59	G/Y	Sensor power supply [Camshaft position sensor (PHASE)]	[Ignition switch: ON]	Approximately 5V
64	B	Sensor ground [Camshaft position sensor (PHASE)]	[Engine is running] Warm-up condition Idle speed	Approximately 0V
69	R	Camshaft position sensor (PHASE)	[Engine is running] Warm-up condition Idle speed NOTE: The pulse cycle changes depending on RPM at idle	Courtesy of NISSAN MOTOR CO., U.S.A.
69	R	Camshaft position sensor (PHASE)	[Engine is running] Engine speed: 2, 000 RPM	Courtesy of NISSAN MOTOR CO., U.S.A.
*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
