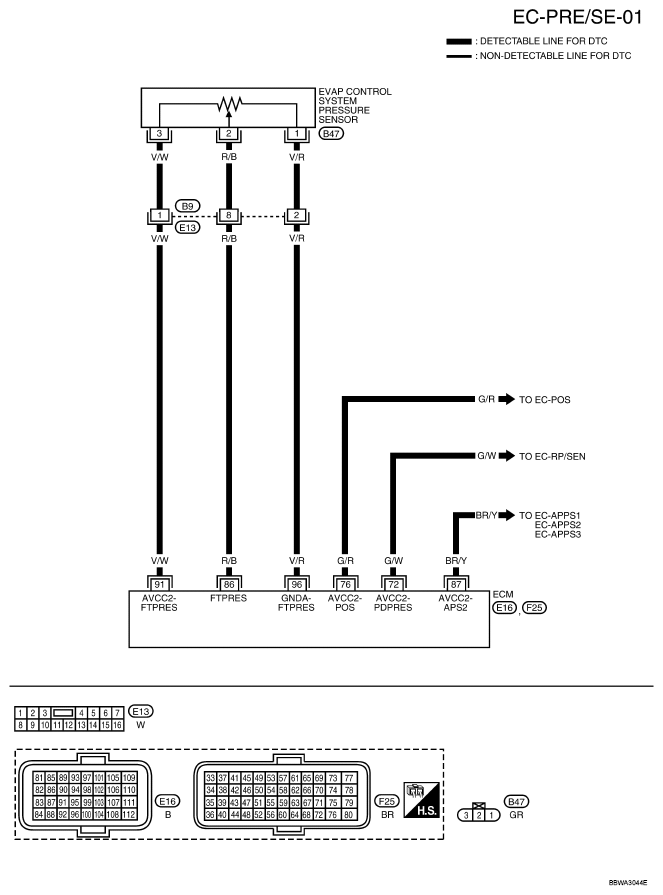

DTC P0453 EVAP Control System Pressure Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
INPUT/OUTPUT VOLTAGE CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 72 | G/W | Sensor power supply (Refrigerant pressure sensor) | [Ignition switch: ON] | Approximately 5V |
| 76 | G/R | Sensor power supply [Crankshaft position sensor (POS)] | [Ignition switch: ON] | Approximately 5V |
| 86 | R/B | EVAP control system pressure sensor | [Ignition switch: ON] | Approximately 1.8 - 4.8V |
| 87 | BR/Y | Sensor power supply (APP sensor 2) | [Ignition switch: ON] | Approximately 5V |
| 91 | V/W | EVAP control system pressure sensor power supply | [Ignition switch: ON] | Approximately 5V |
| 96 | V/R | Sensor ground (EVAP control system pressure sensor) | [Engine is running]
|
Approximately 0V |
