Evaporative Emission Line Drawing

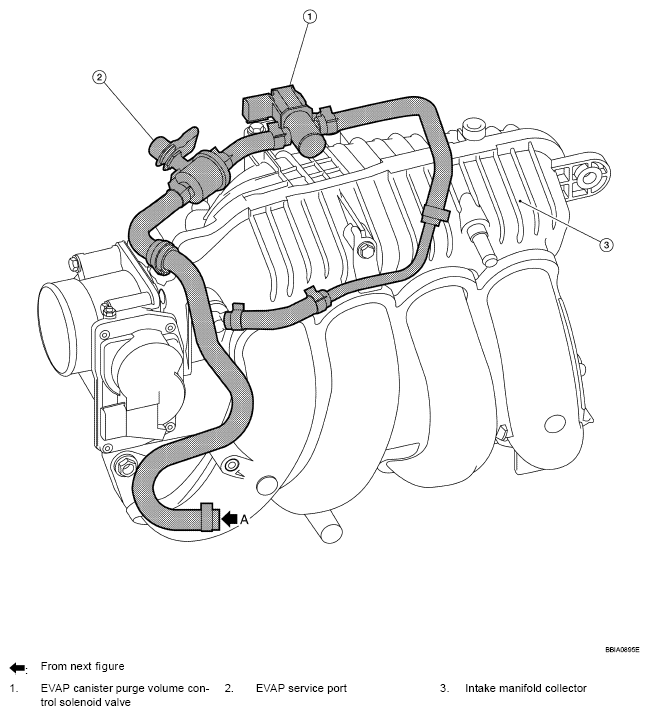

Fig 1: Identifying Evaporative Emission Line Drawing
G04925689Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

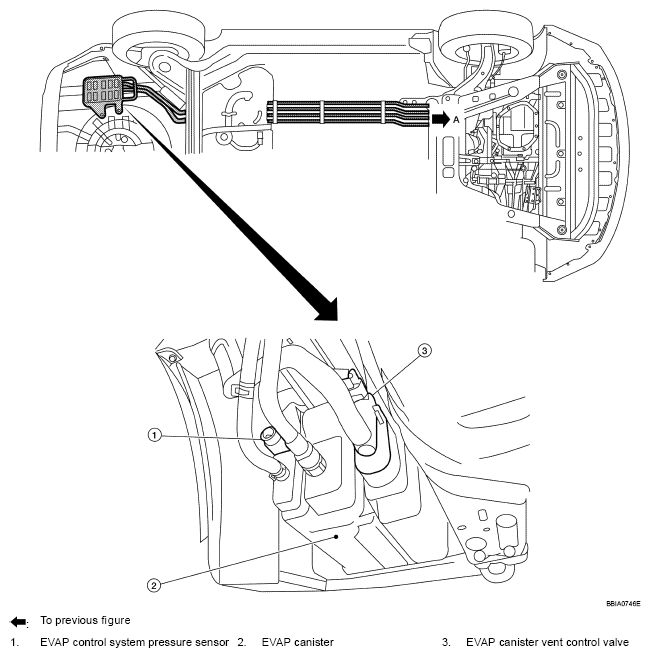

Fig 2: Identifying Evaporative Emission Line Drawing
G04925690Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
