Vacuum Hose Drawing

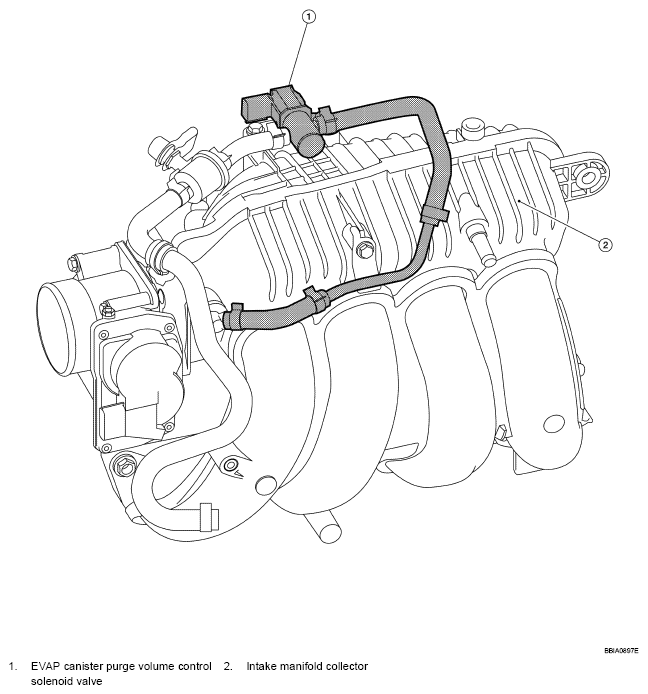

Fig 1: Identifying Vacuum Hose Drawing

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses. Refer to "SYSTEM DIAGRAM "for Vacuum Control System.
