Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable tool, release the metal clip and pawls, then lift the front power window and door lock/unlock switch and finisher upward as an assembly from the door finisher.
    CAUTION: Wrap a cloth around suitable tool to protect components from damage.
  2. Disconnect the harness connector, then remove the assembly from front door finisher.
  3. Release the four tabs (A), two on each side, then separate the front power window and door lock/unlock switch (1) from the switch finisher (2).

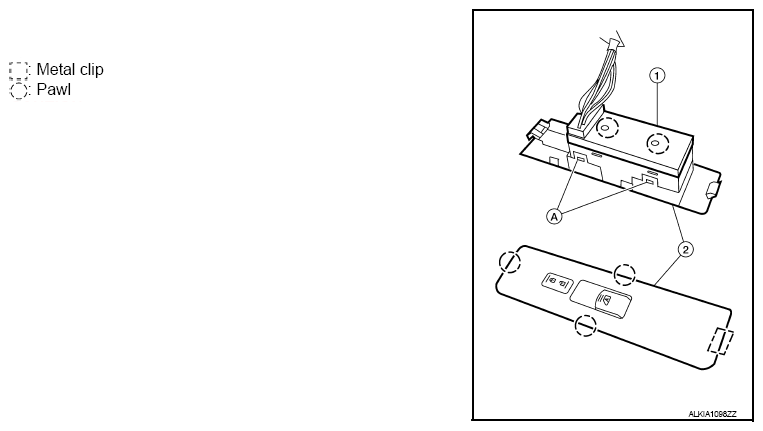

    Fig 1: Identifying Front Power Window And Door Lock/Unlock Switch, Switch Finisher And Tabs
    G08168509Courtesy of NISSAN NORTH AMERICA, INC.
