Brake Pedal
WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

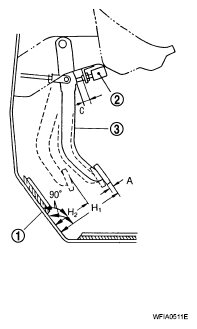

BRAKE PEDAL SPECIFICATION
| Unit: mm (in) | ||
| H1 | Brake pedal initial height (from dash panel top surface) | 164.0 - 174.0 mm (6.45 - 6.85 in) |
| H2 | Brake pedal depressed height (under a force of 490 N (50 kg-f, 110 lbf) with the engine running) | - |
| C | Clearance between the threaded end of stop lamp switch or ASCD switch, if equipped (2) and brake pedal lever (3). | 0.74 - 1.96 mm (0.0291 - 0.0772 in) |
| A | Pedal play | 3 - 11 mm (0.12 - 0.43 in) |
