Removal and Installation: Installation

Installation is in the reverse order of removal. For tightening specifications, refer to "COMPONENTS ".

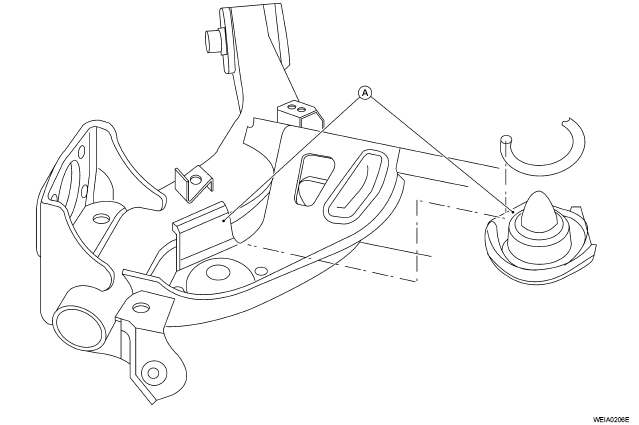

• When installing rear spring rubber seat, be sure that the flat areas (A) are aligned.
  Fig 1: Identifying Rear Spring Rubber Seat

  Courtesy of NISSAN MOTOR CO., U.S.A.
• When installing rear spring, be sure that the gap is less than 5mm.
  Fig 2: Identifying Rear Spring Gap

  Courtesy of NISSAN MOTOR CO., U.S.A.
