Removal and Installation: MR20DE: Components

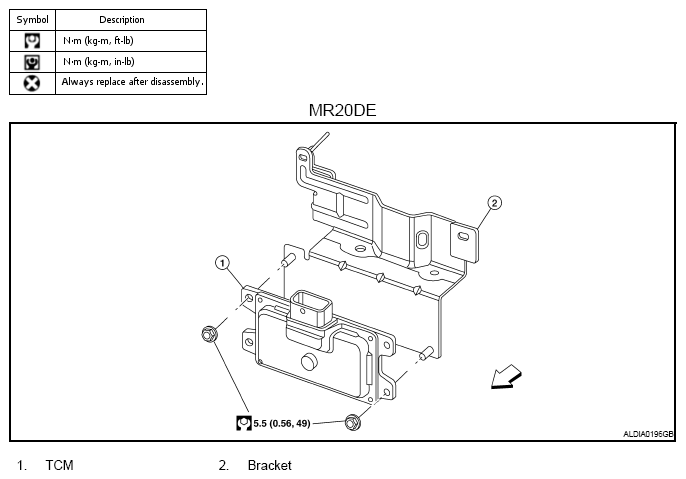

Fig 1: Transmission Control Module Replacement Components With Torque Specifications (MR20DE)
G00465308Courtesy of NISSAN MOTOR CO., U.S.A.
