Component Parts Location

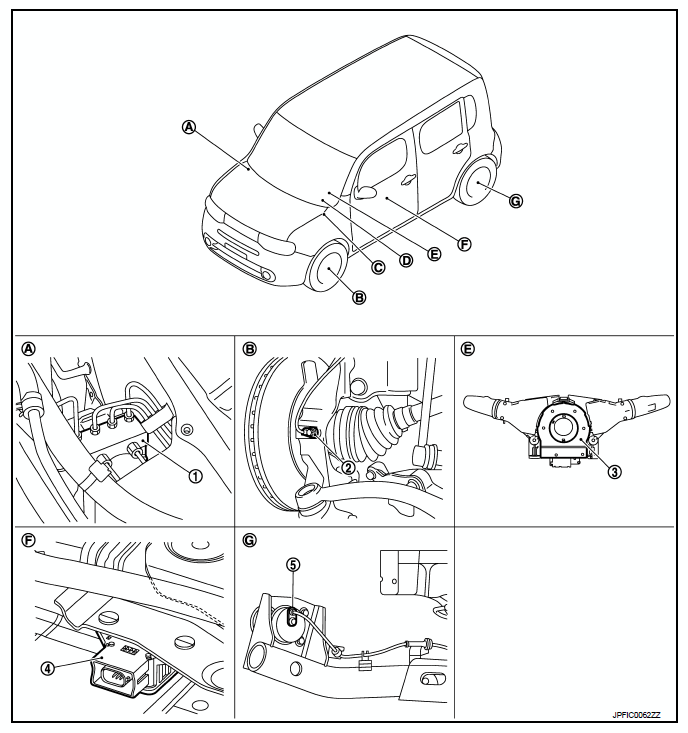

VDC COMPONENT PARTS LOCATION TABLE
| 1. | ABS actuator and electric unit (control unit) | 2. | Front wheel sensor | 3. | Steering angle sensor |
| 4. | Yaw rate/side G sensor | 5. | Rear wheel sensor | ||
| A. | Engine room right side | B. | Steering knuckle | C. | VDC OFF switch: Refer to "EXPLODED VIEW " |
| D. | ABS warning lamp, brake warning lamp, VDC OFF indicator lamp, SLIP indicator lamp: Refer to "METER SYSTEM : SYSTEM DESCRIPTION " | E. | Back of spiral cable assembly | F. | Under front (left side) seat |
| G. | Rear axle | ||||
