Component Parts Location

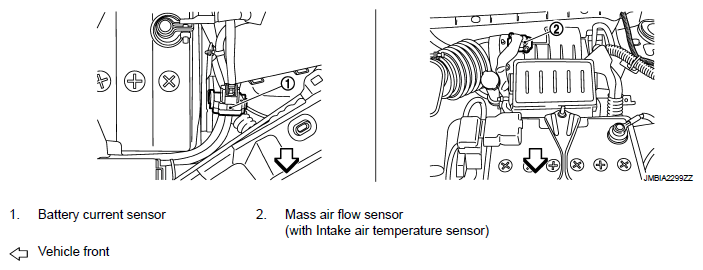

Fig 1: Identifying Intake Valve Timing Control System Component Location (1 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

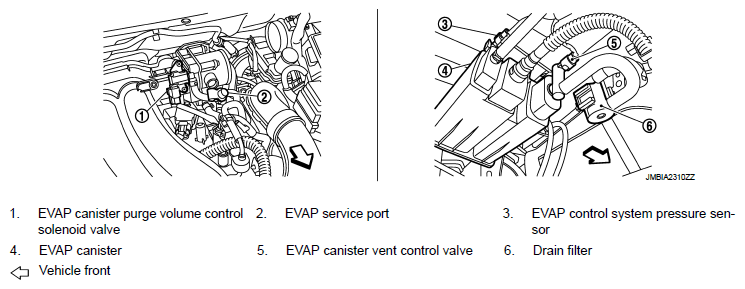

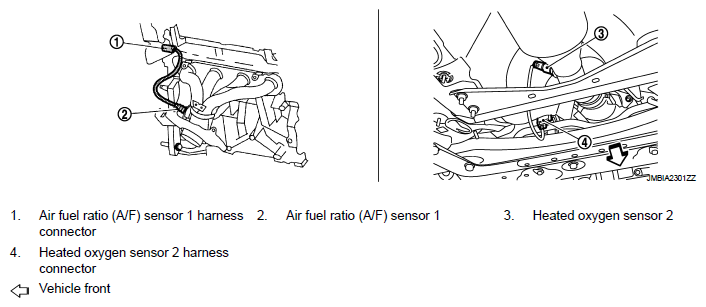

Fig 2: Identifying Intake Valve Timing Control System Component Location (2 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

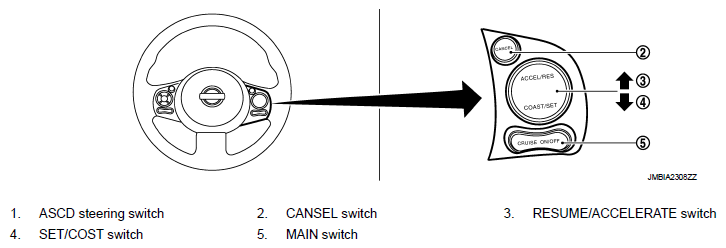

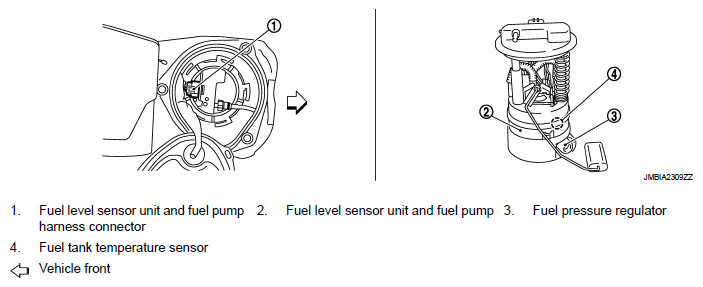

Fig 3: Identifying Intake Valve Timing Control System Component Location (3 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

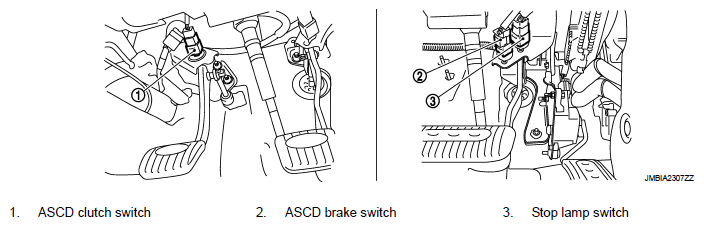

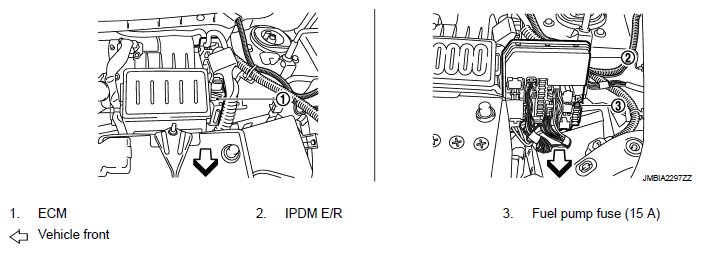

Fig 4: Identifying Intake Valve Timing Control System Component Location (4 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

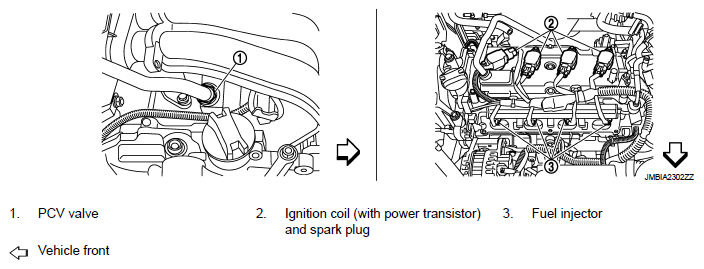

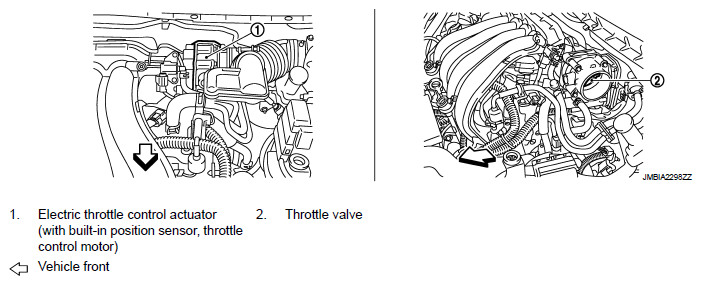

Fig 5: Identifying Intake Valve Timing Control System Component Location (5 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

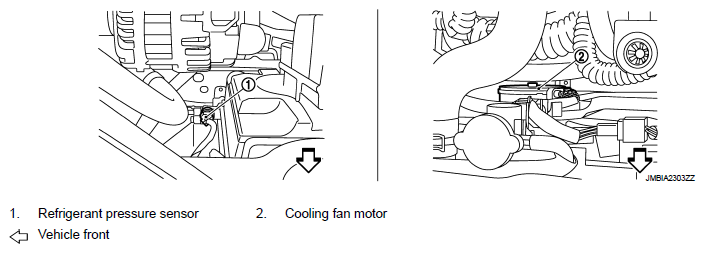

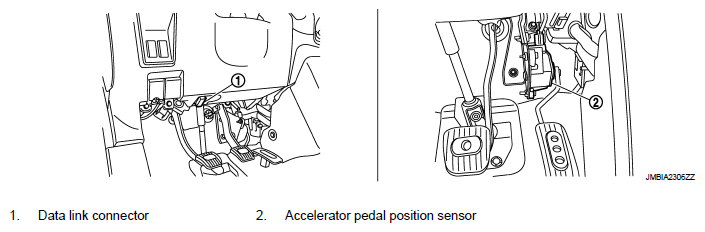

Fig 6: Identifying Intake Valve Timing Control System Component Location (6 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

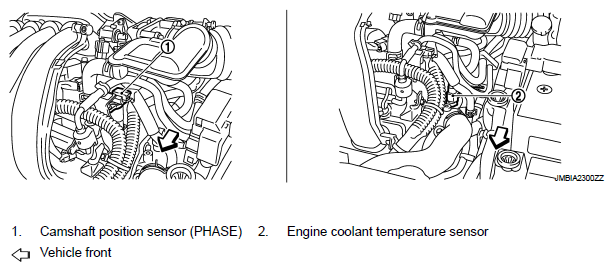

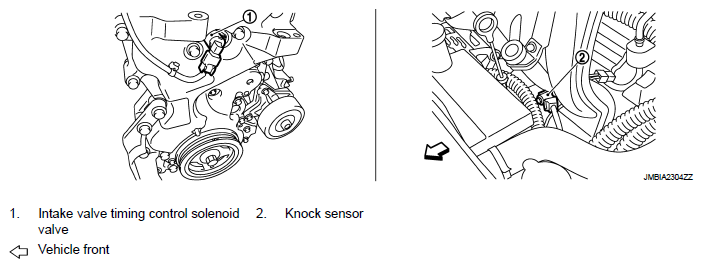

Fig 7: Identifying Intake Valve Timing Control System Component Location (7 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

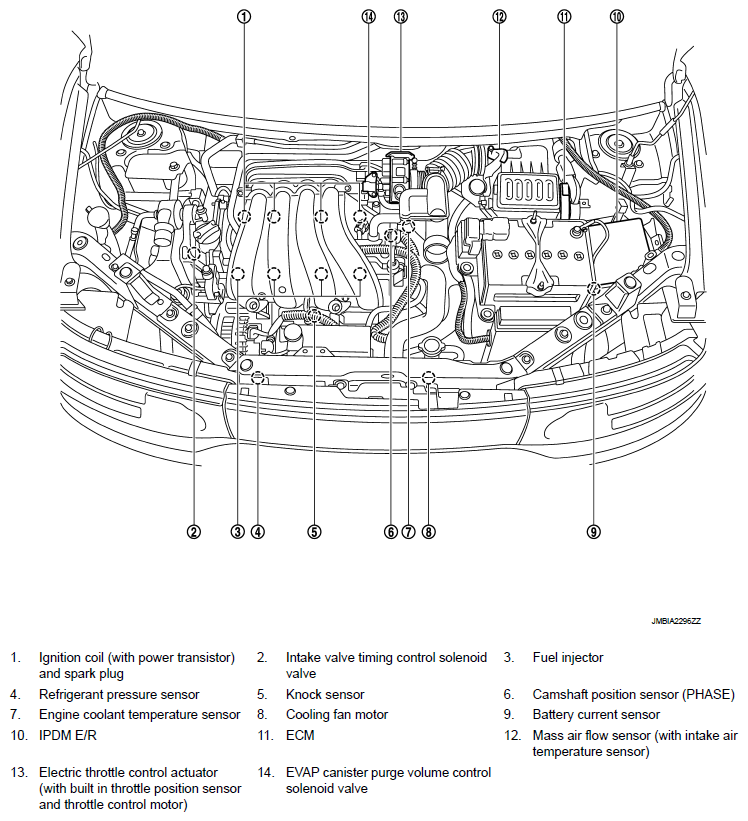

Fig 8: Identifying Intake Valve Timing Control System Component Location (8 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Intake Valve Timing Control System Component Location (9 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Intake Valve Timing Control System Component Location (10 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Intake Valve Timing Control System Component Location (11 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intake Valve Timing Control System Component Location (12 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Intake Valve Timing Control System Component Location (13 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Intake Valve Timing Control System Component Location (14 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Intake Valve Timing Control System Component Location (15 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Intake Valve Timing Control System Component Location (16 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.
