System --- Engine Mechanical & Other

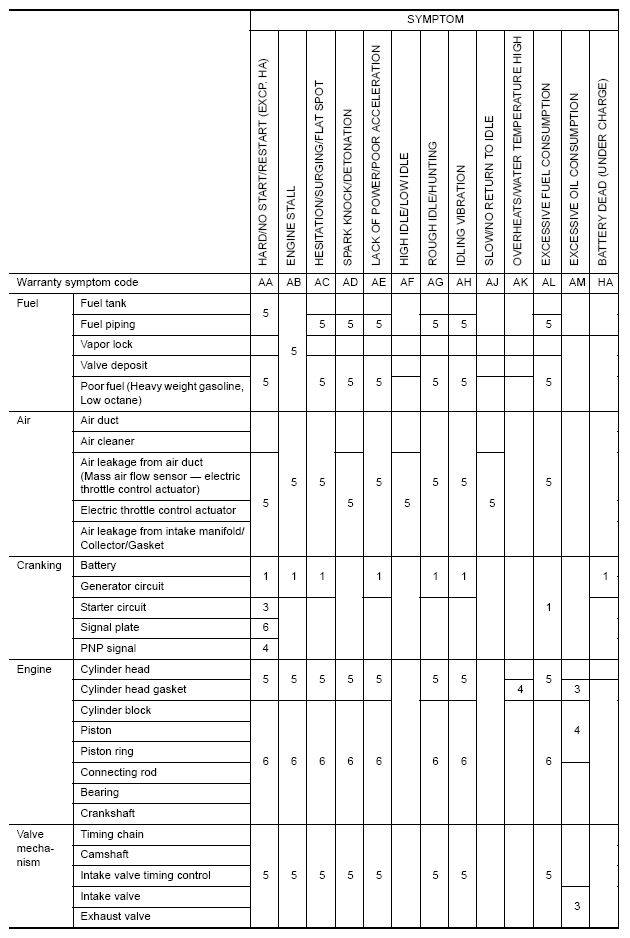

Fig 1: Engine Control System Chart (3 Of 4)
G05870073Courtesy of NISSAN MOTOR CO., U.S.A.

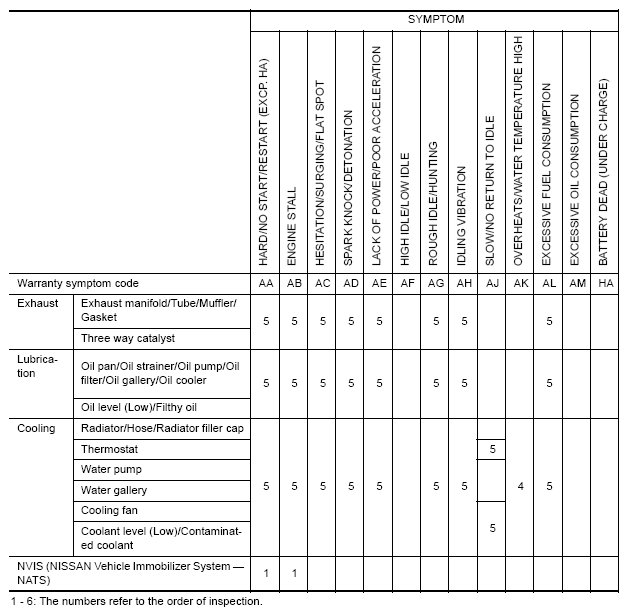

Fig 2: Engine Control System Chart (4 Of 4)
G05870074Courtesy of NISSAN MOTOR CO., U.S.A.
