IGNITION TIMING: Special Repair Requirement

1. Attach timing light to loop wires as shown.

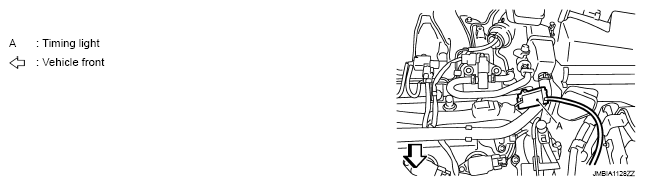

   Fig 1: Identifying Timing Light

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check ignition timing.

: INSPECTION END

Fig 2: Identifying Timing Indicators

Courtesy of NISSAN MOTOR CO., U.S.A.
