Mil And Data Link Connector: Wiring Diagram
NOTE:
For references to PG-Power, see
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS - QUEST
.

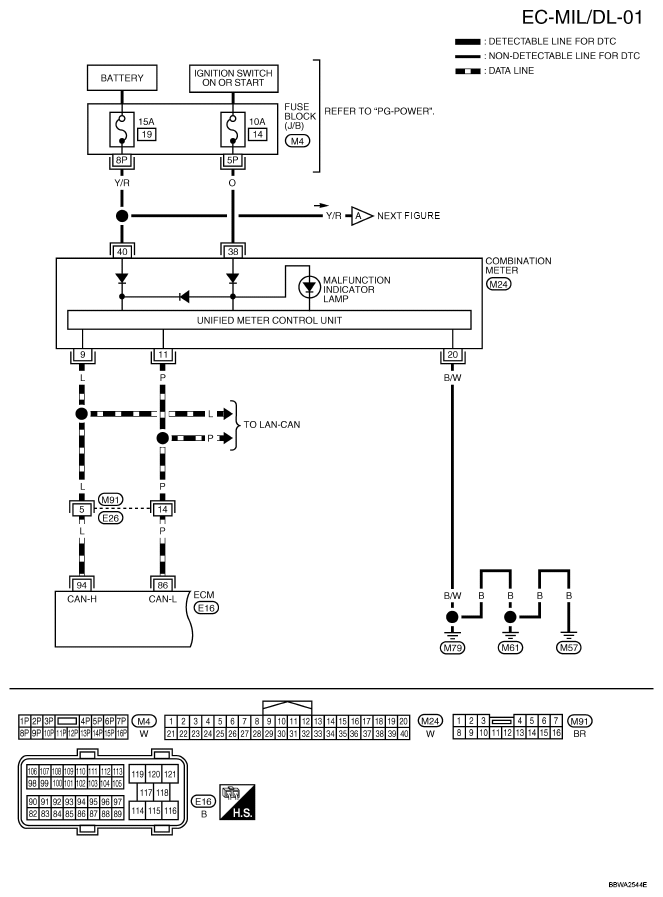

Fig 1: MIL And Data Link Connector - Wiring Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

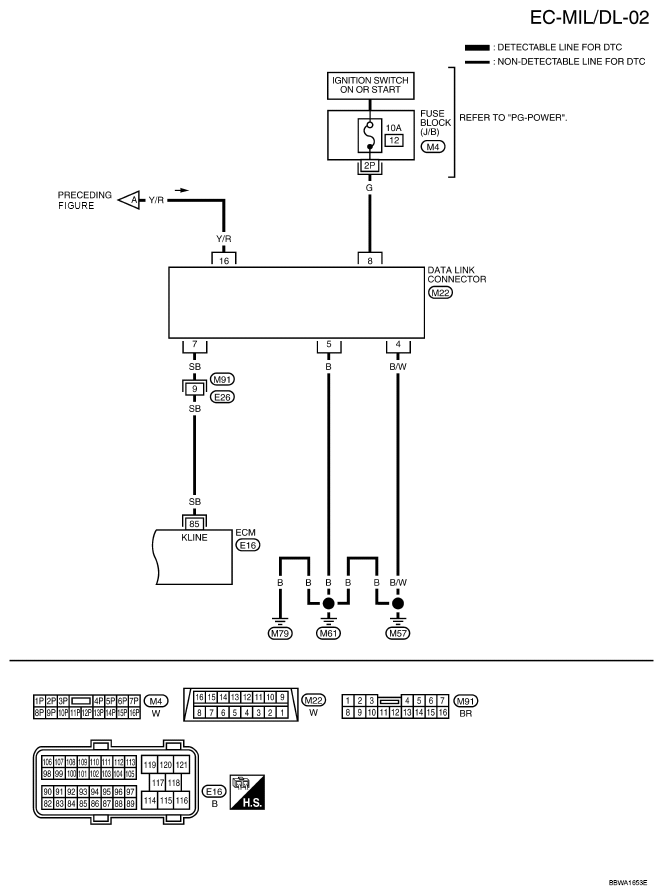

Fig 2: MIL And Data Link Connector - Wiring Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
