Cooling Fan Operation: Notes

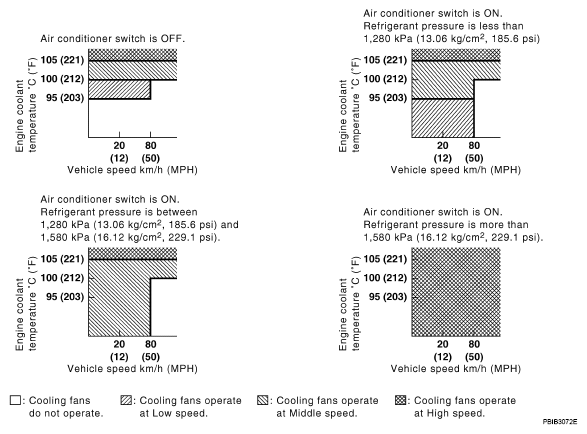

Fig 1: Cooling Fan Operation Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
