Diagnosis Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to , "GROUND INSPECTION ".

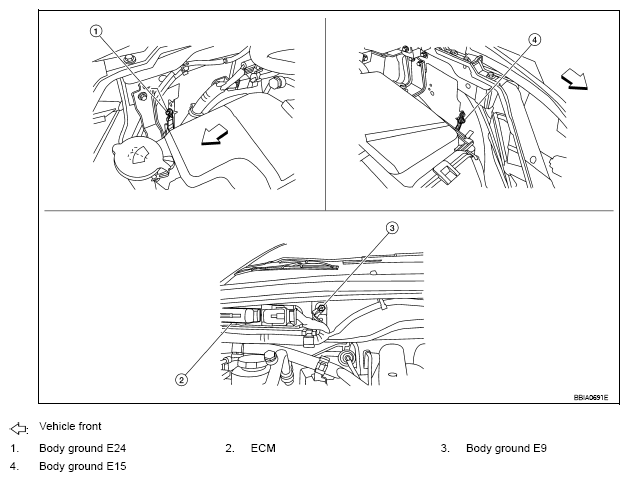

Fig 1: Identifying Body Ground E24, ECM And Body Ground E9

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.

Refer to , "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 3.

NG: Replace engine coolant temperature sensor.

Refer to , "DIAGNOSIS PROCEDURE ".

INSPECTION END
