Circuit Diagram

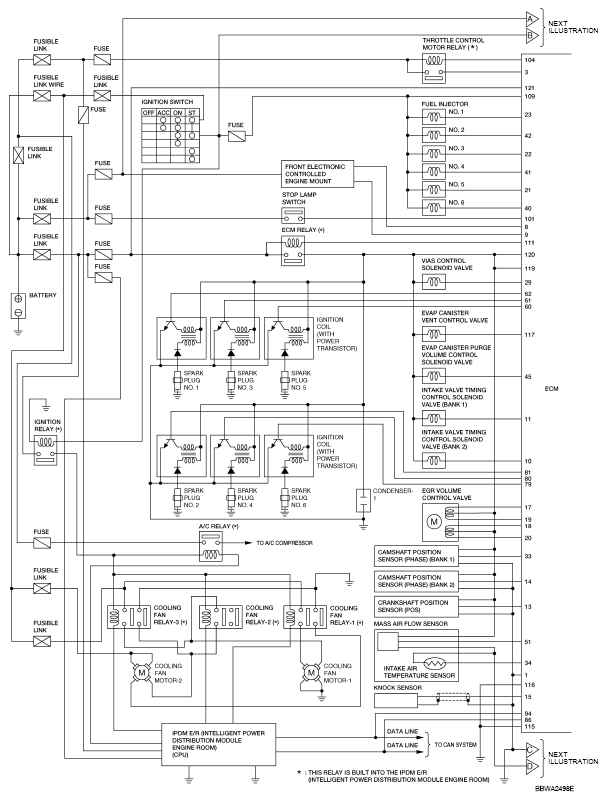

Fig 1: Ignition Switch And Fusible Link - Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

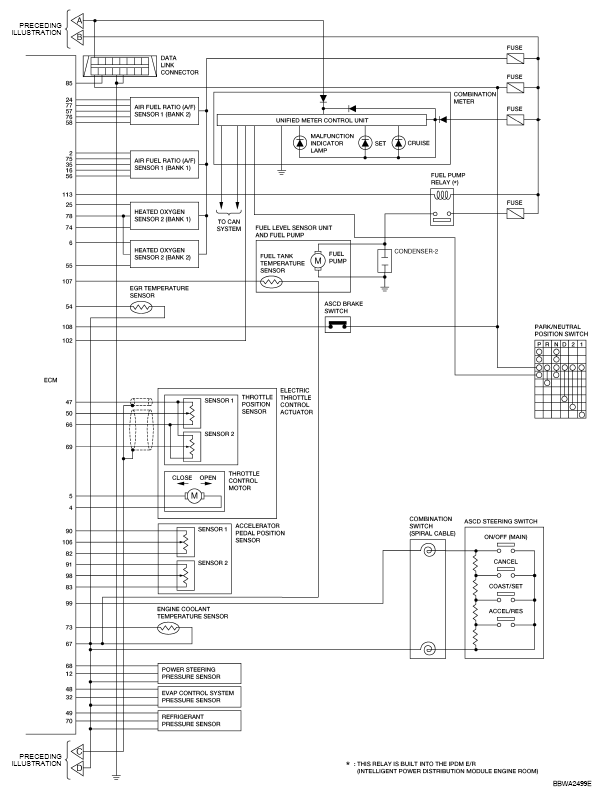

Fig 2: Ignition Switch And Fusible Link - Circuit Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
