Vacuum Hose Drawing

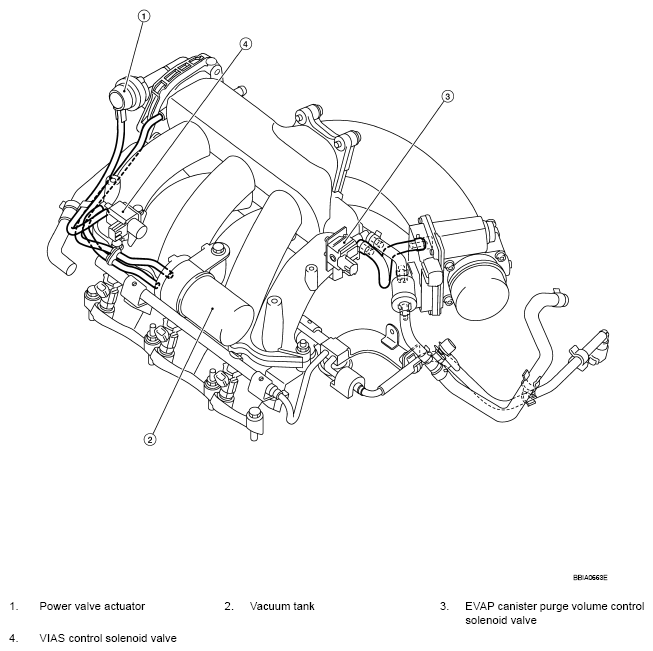

Fig 1: Identifying Power Valve Actuator, Vacuum Tank And EVAP Canister Purge Volume Control Solenoid Valve
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
Refer to , "SCHEMATIC " for Vacuum Control System.
