System Description: Tachometer

The tachometer indicates engine speed in revolutions per minute (rpm). The ECM provides an engine speed signal to combination meter via CAN communication lines.

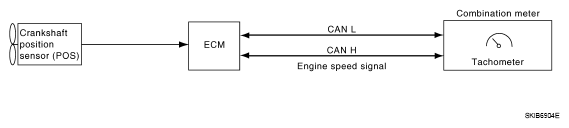

Fig 1: Tachometer System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
