System - Engine Mechanical & Other

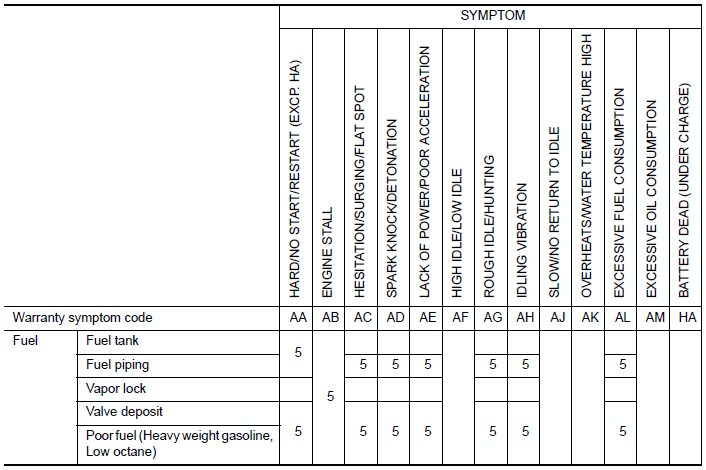

Fig 1: Engine Mechanical And Other - Symptom Matrix Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

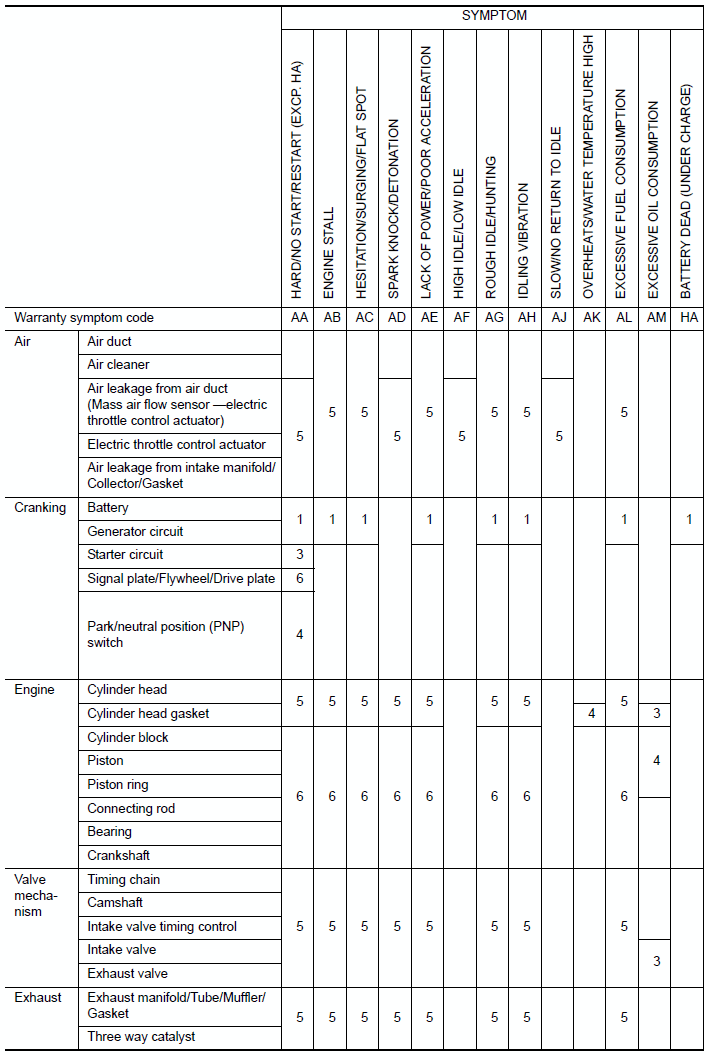

Fig 2: Engine Mechanical And Other - Symptom Matrix Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

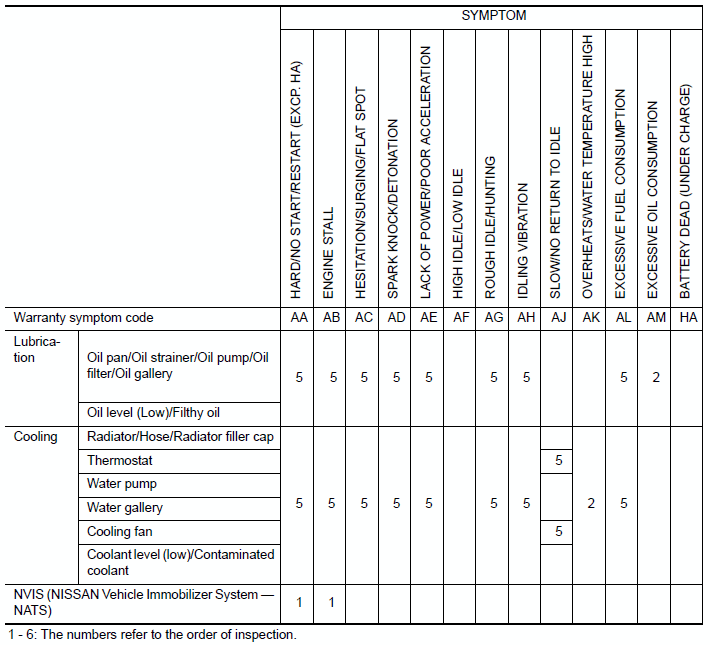

Fig 3: Engine Mechanical And Other - Symptom Matrix Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
