Front Suspension Assembly: Component

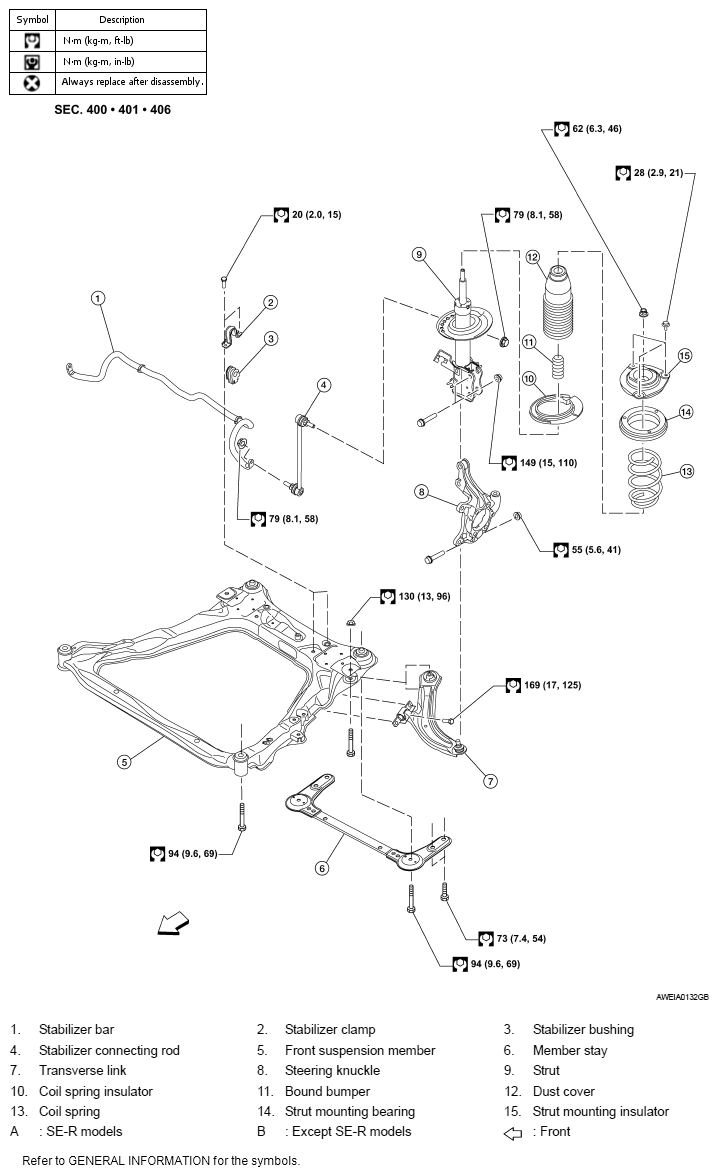

Fig 1: Front Suspension Assembly Replacement Components With Torque Specifications
G05925787Courtesy of NISSAN MOTOR CO., U.S.A.
