Park/Neutral Position (PNP) Switch: Components

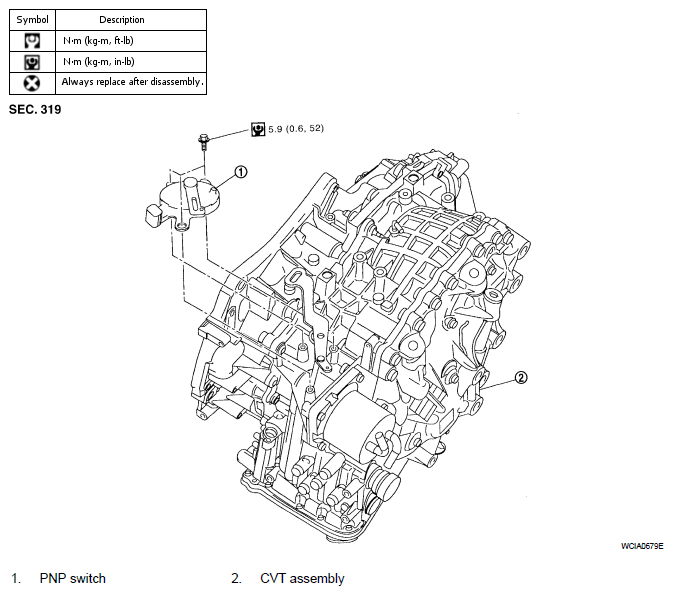

Fig 1: Park/Neutral Position (PNP) Switch Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Align PNP switch position when installing.
After installation of PNP switch, check the continuity of PNP switch. Refer to "ADJUSTMENT OF PNP SWITCH ".
After installation is complete, adjust and check CVT position. Refer to "ADJUSTMENT OF CVT POSITION ", "CHECKING OF CVT POSITION ".
