Removal And Installation - 2.5L: Components

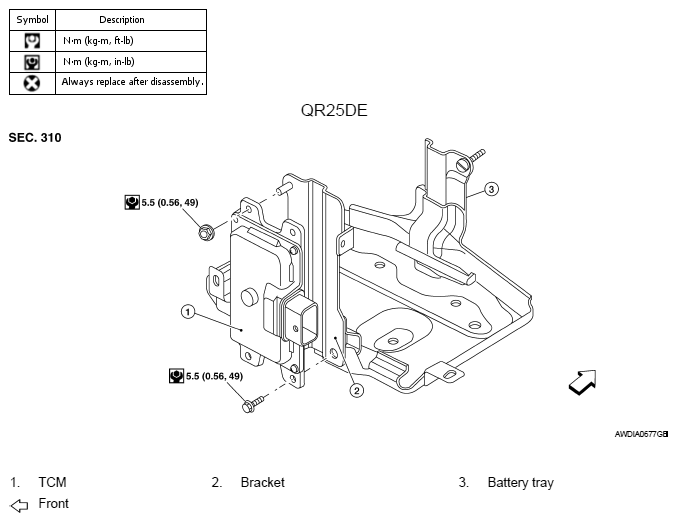

Fig 1: Transmission Control Module Replacement Components With Torque Specifications
G05924373Courtesy of NISSAN MOTOR CO., U.S.A.
