Ignition Timing

Any of following two methods may be used.

Method A

1. Attach timing light to loop wire (1) as shown.
   • <=: Vehicle front
     Fig 1: Identifying Timing Light To Loop Wire

     Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check ignition timing.
   • Timing indicator (1)
     Fig 2: Identifying Timing Indicator

     Courtesy of NISSAN MOTOR CO., U.S.A.

Method B

1. Remove No. 4 ignition coil (1).
   • <=: Vehicle front
     Fig 3: Identifying No. 4 Ignition Coil

     Courtesy of NISSAN MOTOR CO., U.S.A.
2. Connect No. 4 ignition coil (1) and No. 4 spark plug with suitable high-tension wire (A) as shown, and attach timing light clamp (B) to this wire.
   • <=: Vehicle front
     Fig 4: Connecting No. 4 Ignition Coil And No. 4 Spark Plug With Suitable High-Tension Wire

     Courtesy of NISSAN MOTOR CO., U.S.A.

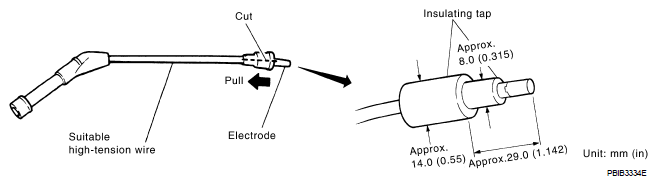

     Fig 5: Identifying Suitable High-Tension Wire

     Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check ignition timing.
   • Timing indicator (1)
     Fig 6: Identifying Timing Indicator

     Courtesy of NISSAN MOTOR CO., U.S.A.
