Fuel Injector: Wiring Diagram

NOTE: For references to "PG-Power", see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS article.

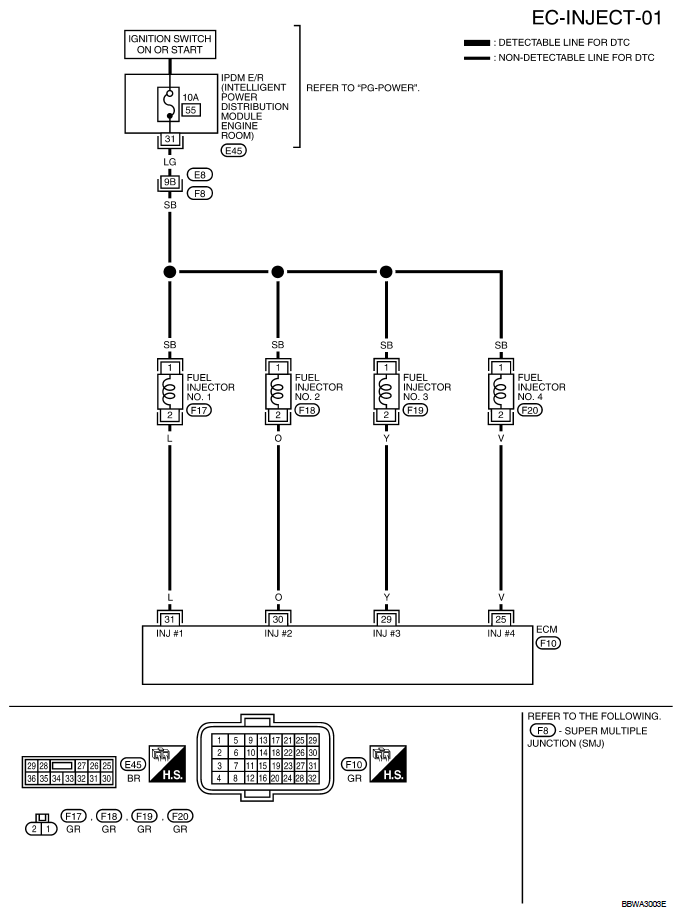

Fig 1: Fuel Injector - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-III.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

VOLTAGE REFERENCE CHART

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

25
29
30
31

V
Y
O
L

Fuel injector No. 4
Fuel injector No. 3
Fuel injector No. 2
Fuel injector No. 1

[Engine is running]

Warm-up condition
Idle speed
NOTE: The pulse cycle changes depending on RPM at idle

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

[Engine is running]

Warm-up condition
Engine speed: 2, 000 RPM

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
