Method B

  1. Remove No. 4 ignition coil (1).
    • <==: Vehicle front
      Fig 1: Identifying No. 4 Ignition Coil
      G05932495Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 4 ignition coil (1) and No. 4 spark plug with suitable high-tension wire (A) as shown, and attach timing light clamp (B) to this wire.
    • <==: Vehicle front
      Fig 2: Identifying No. 4 Ignition Coil And High-Tension Wire With Timing Light Clamp
      G05932496Courtesy of NISSAN MOTOR CO., U.S.A.

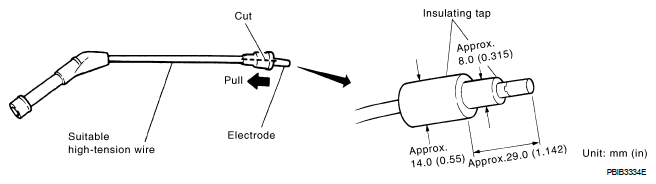

      Fig 3: [Identifying High-Tension Wire]
      G05932497Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.
    • Timing indicator (1)
      Fig 4: Identifying Timing Indicator
      G05932498Courtesy of NISSAN MOTOR CO., U.S.A.
