System Diagram

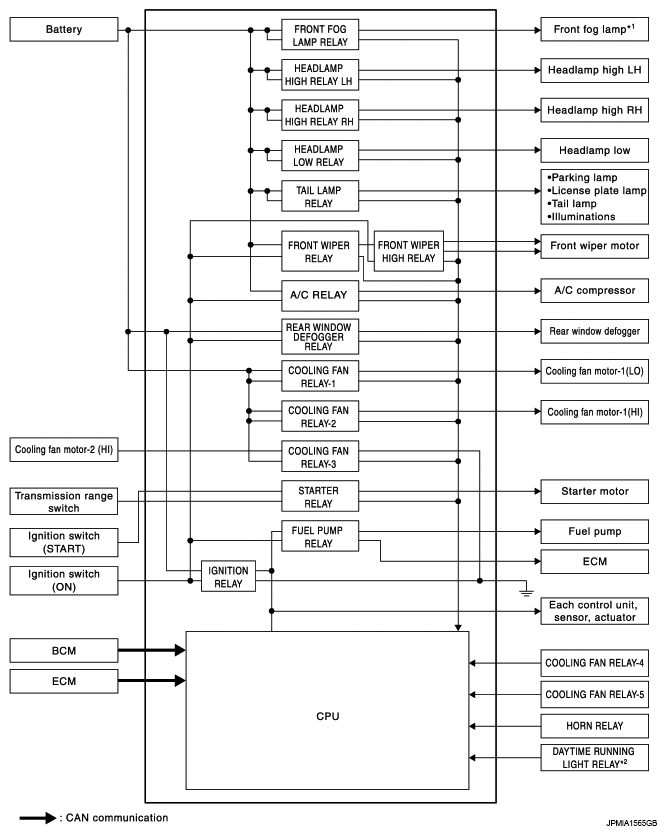

Fig 1: Relay Control - System Diagram
G06587904Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • *1: With front fog lamp system
  • *2: With daytime running light system
