Terminal Layout

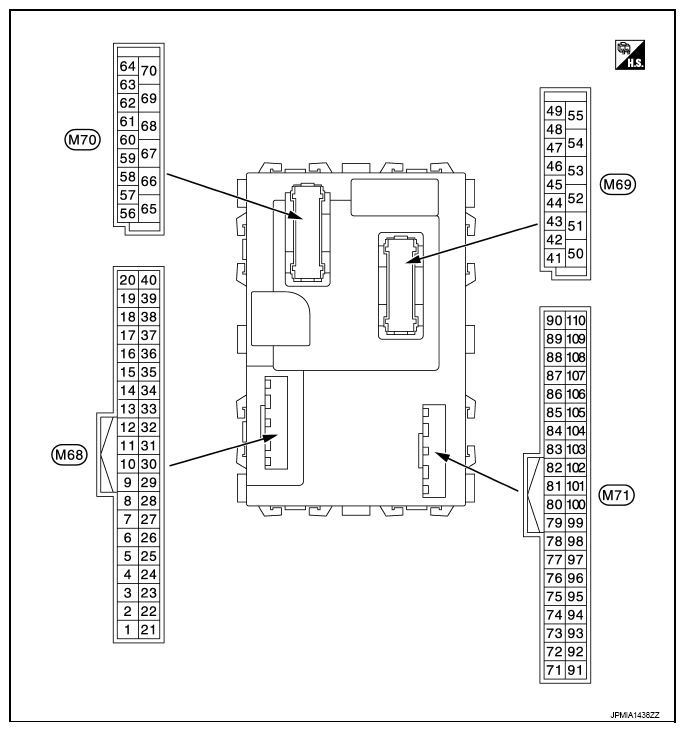

Fig 1: Identifying BCM Terminal Layout (With Intelligent Key)
G07105732Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Connector color
  • M68, M70: Black
  • M69, M71: White
