Exploded View

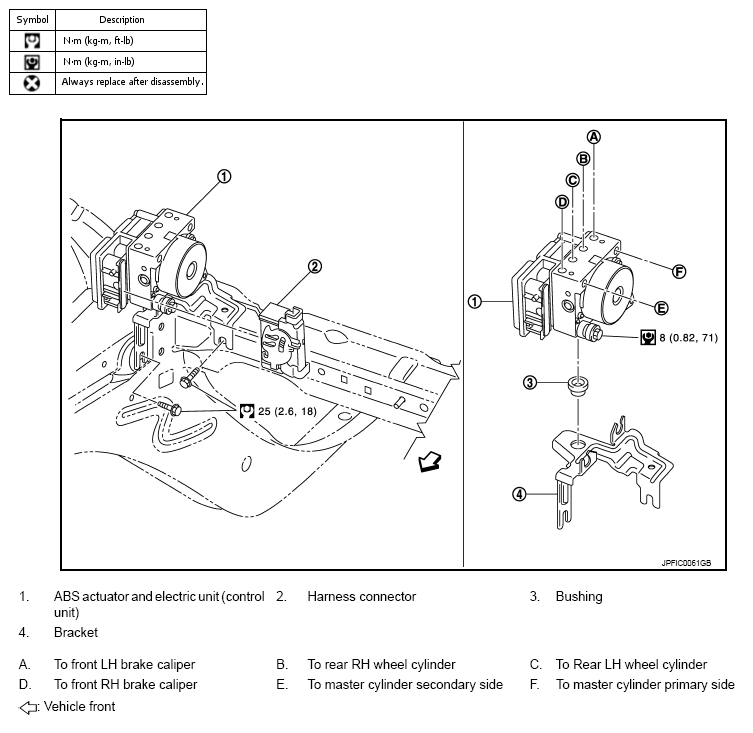

Fig 1: Exploded View Of ABS Actuator & Electric Unit With Torque Specifications (Control Unit)
G07107555Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
