System Description
>>
EBD
>>
Component Parts Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Parts Location

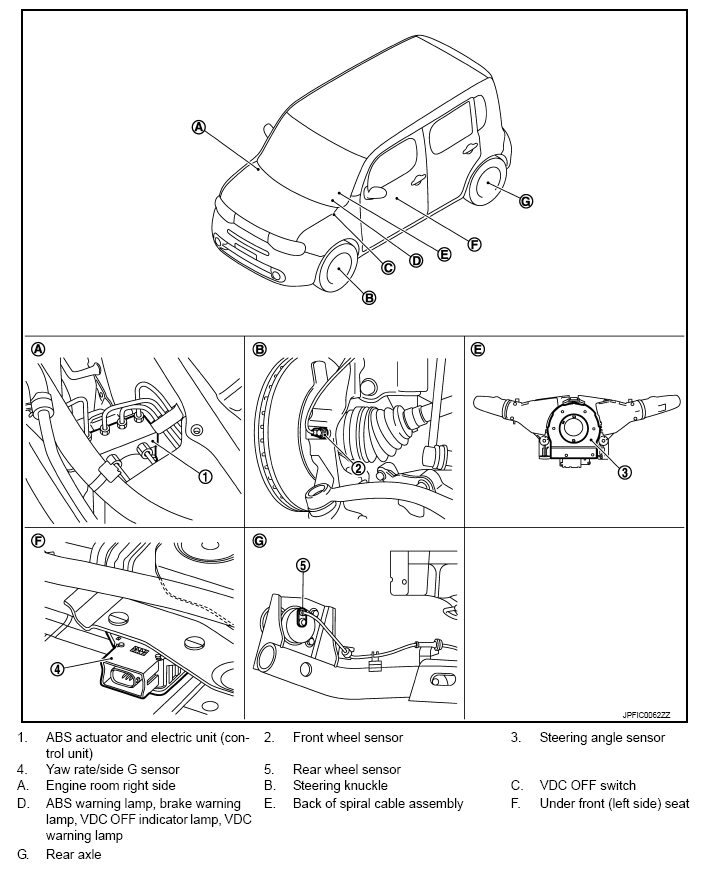

Fig 1: Identifying EBD System Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
