Removal and Installation: Removal

  1. Remove the switch panel finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the push-ignition switch (2) fixing pawl using a flat-blade screwdriver (A), and then remove NATS antenna amp..

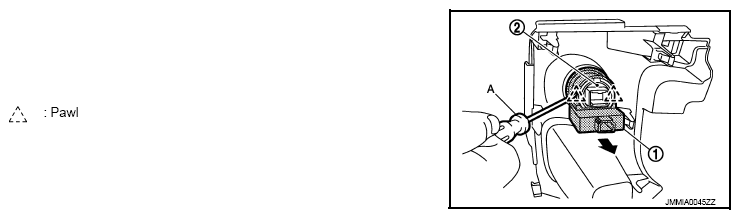

    Fig 1: Disconnecting Push-Ignition Switch Fixing Pawl Using Flatblade Screwdriver
    G07108468Courtesy of NISSAN MOTOR CO., U.S.A.
