Exploded View: Disassembly

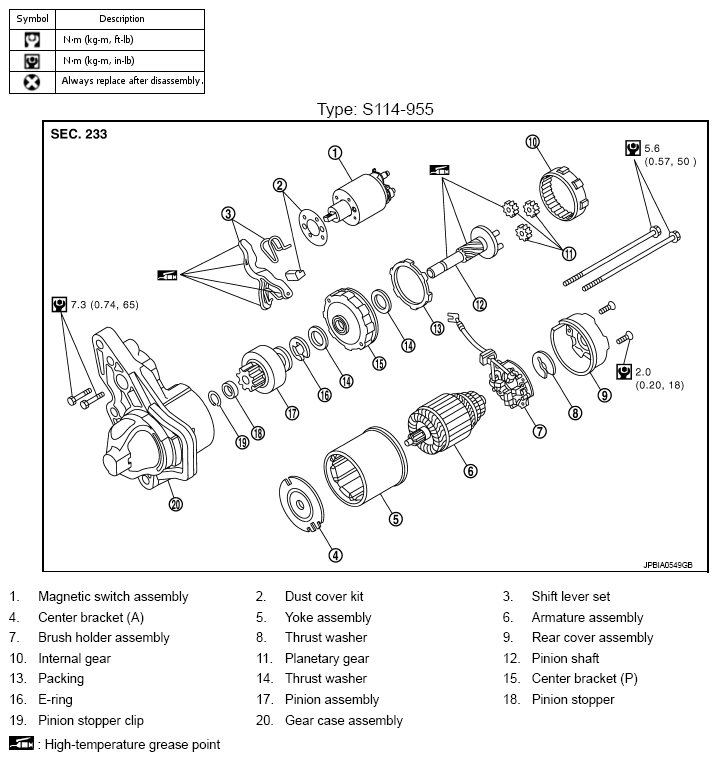

Fig 1: Exploded View Of Starter Motor With Torque Specifications - Type S114-955

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

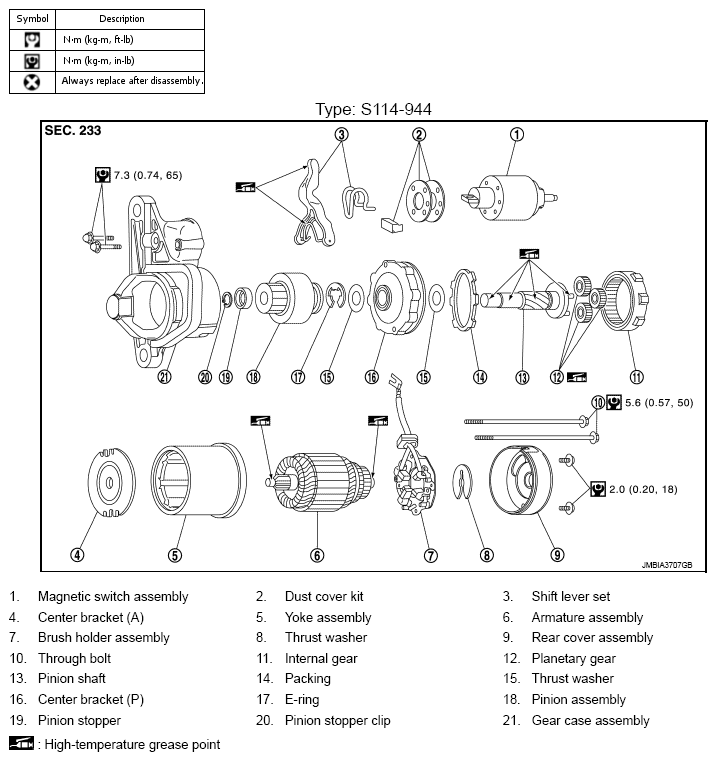

Fig 2: Exploded View Of Starter Motor With Torque Specifications - Type: S114-944

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

NOTE: Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter.
